Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Retractor Anchor Bolt At Floorpan
    GM371958Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear window trim panel, as required. Refer to Rear Window Shelf Trim Panel Replacement .
  2. Remove the rear sound barrier, as required. Refer to Rear Seat Back Sound Barrier Replacement .
  3. If removing the center retractor, remove the belt bezel from the rear window shelf. Pass the bezel and seat belt through the rear shelf bezel opening.

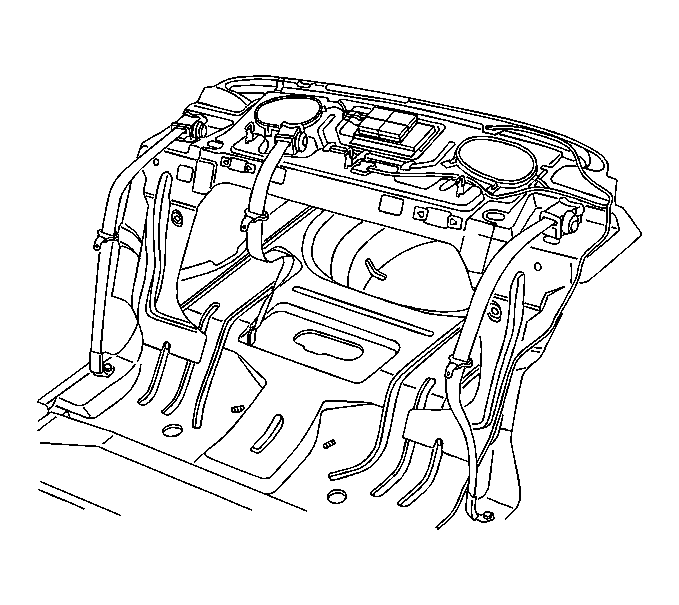

    4. Fig 2: View Of Rear Seat Belt Retractor
    GM1277001Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear seat belt retractor bolt.
  5. Remove the rear seat belt retractor from the vehicle.
