Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Steering Column Wiring Harness Tie Straps

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to SIR Caution .

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
Remove the steering column wiring harness tie straps (1,2).

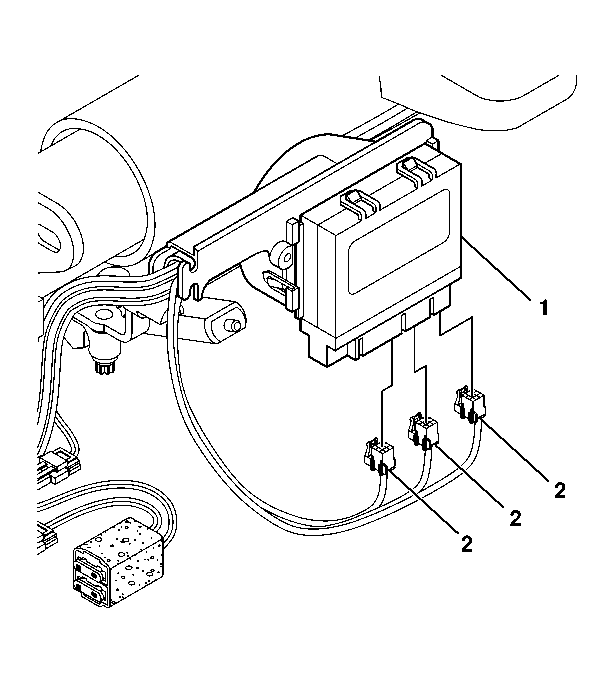

Fig 2: View of Module Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the module electrical connectors (2).

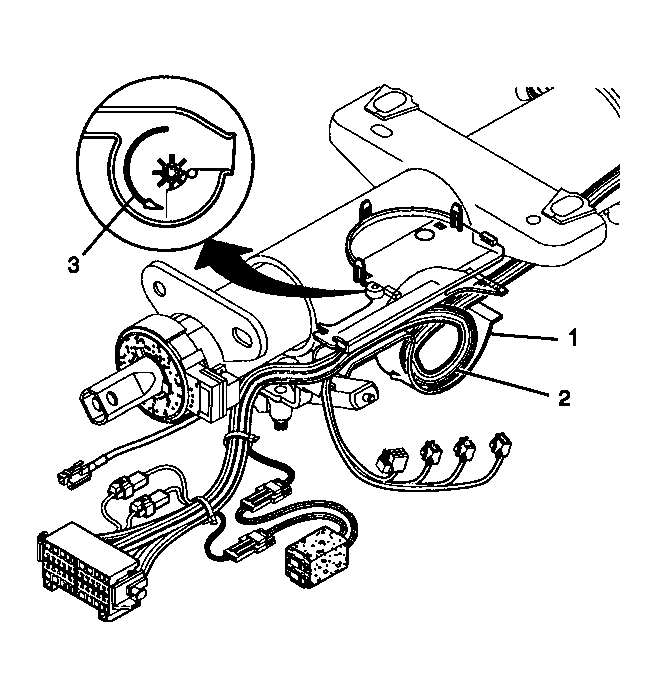

Fig 3: View of Wire Harness & Shield

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Note the direction that the steering column wiring harness is routed for re-installation.

Open the wire harness shield (1) at the lower steering column and remove the wire harness (2).

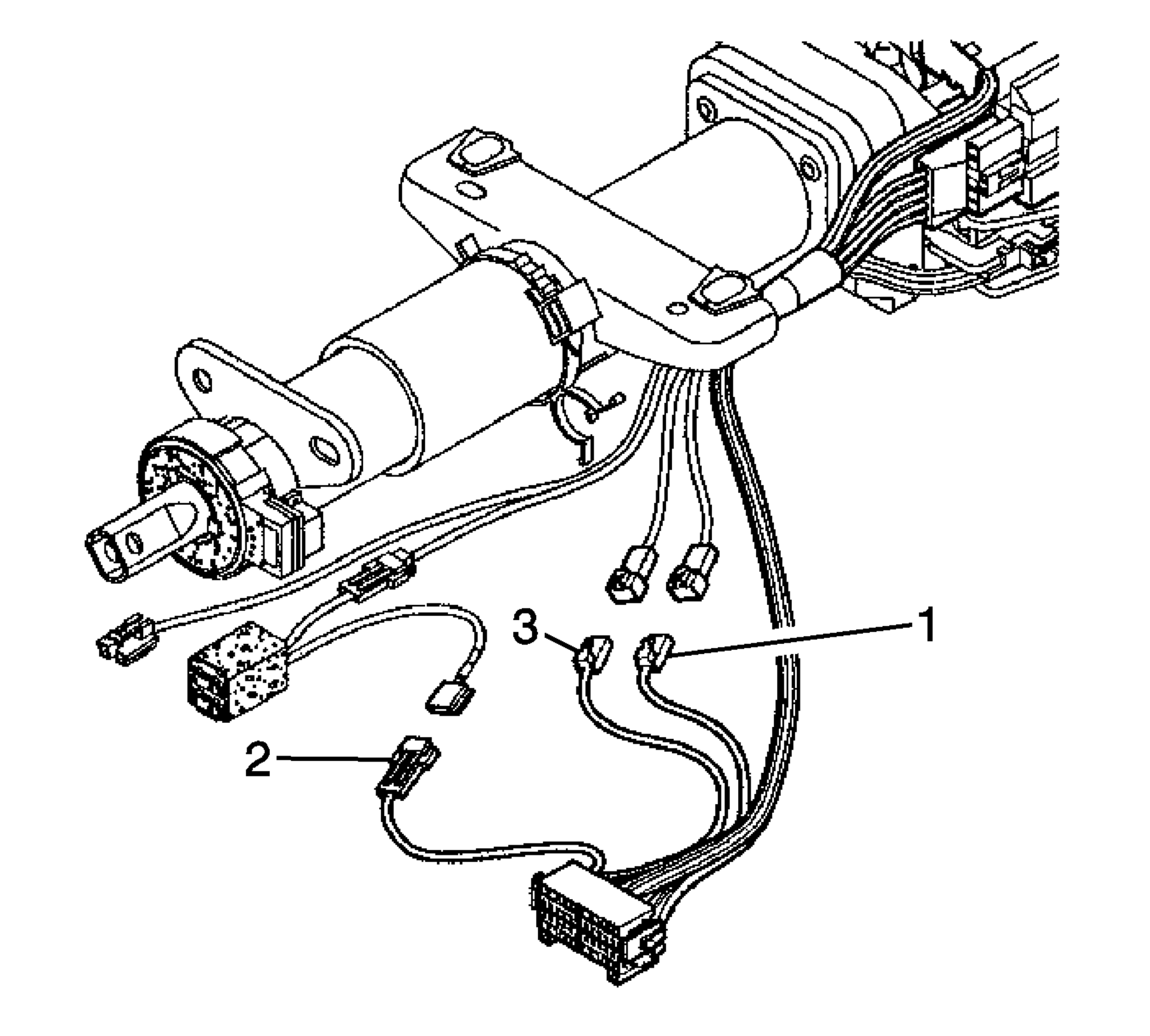

Fig 4: View Of Windshield & Washer Switch Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors (1,3) from the windshield wiper and washer switch.

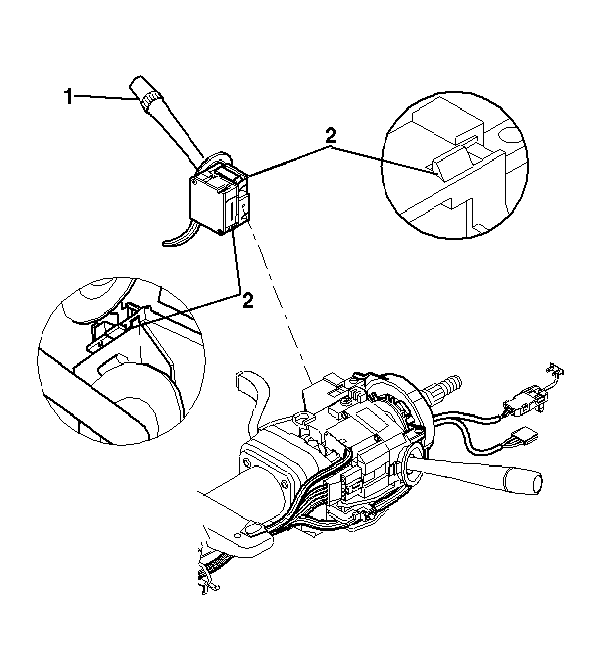

Fig 5: View Of Windshield Wiper & Washer Switch

Courtesy of GENERAL MOTORS CORP.

Depress the locking tab (2) on the windshield wiper and washer switch (1) and remove the switch from the steering column.
