Sunshade Anchor Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

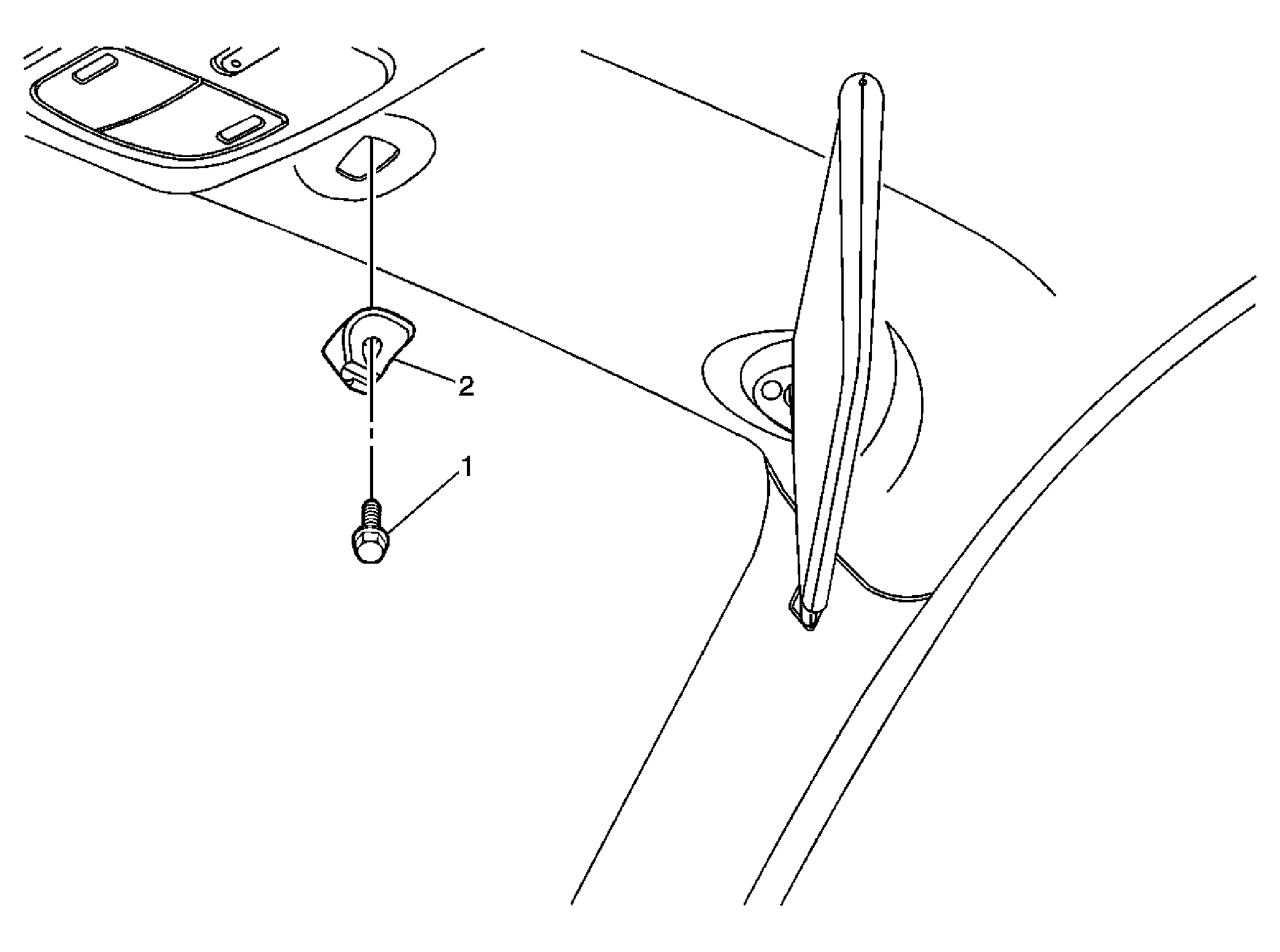

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Sunshade Support Screw Tip: Disengage the sunshade from the support. Tighten: 2 N.m (18 lb in) |
| 2 | Sunshade Support |
