Lower Pillar Garnish Molding Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

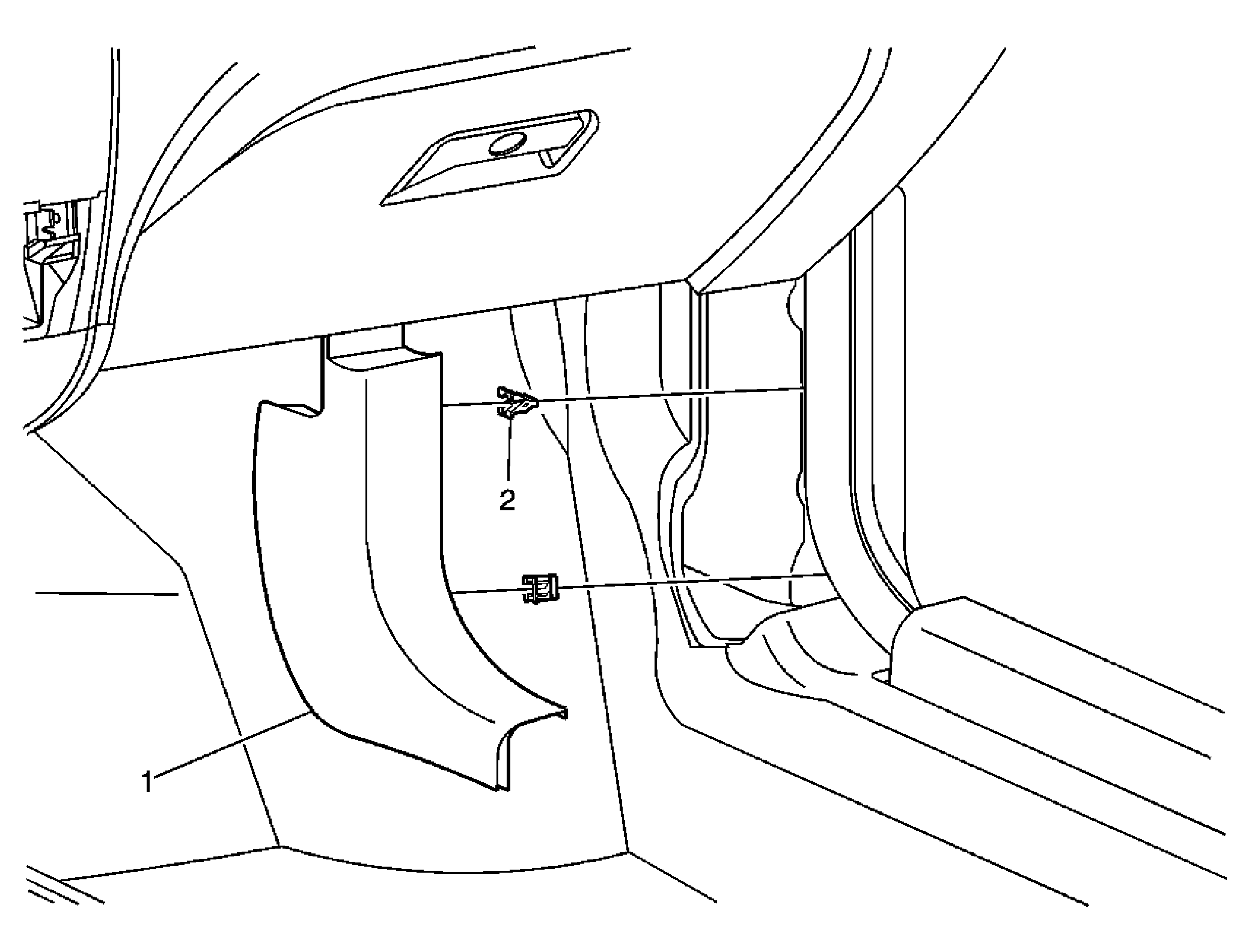

Fig 1: Identifying Lower Pillar Garnish Molding retainers
GM1538926Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Panel Assembly, Lower Pillar Trim
2 Retaining Clip, Lower Pillar Trim Panel (Qty: 2)
