Engine Cooling Schematics

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

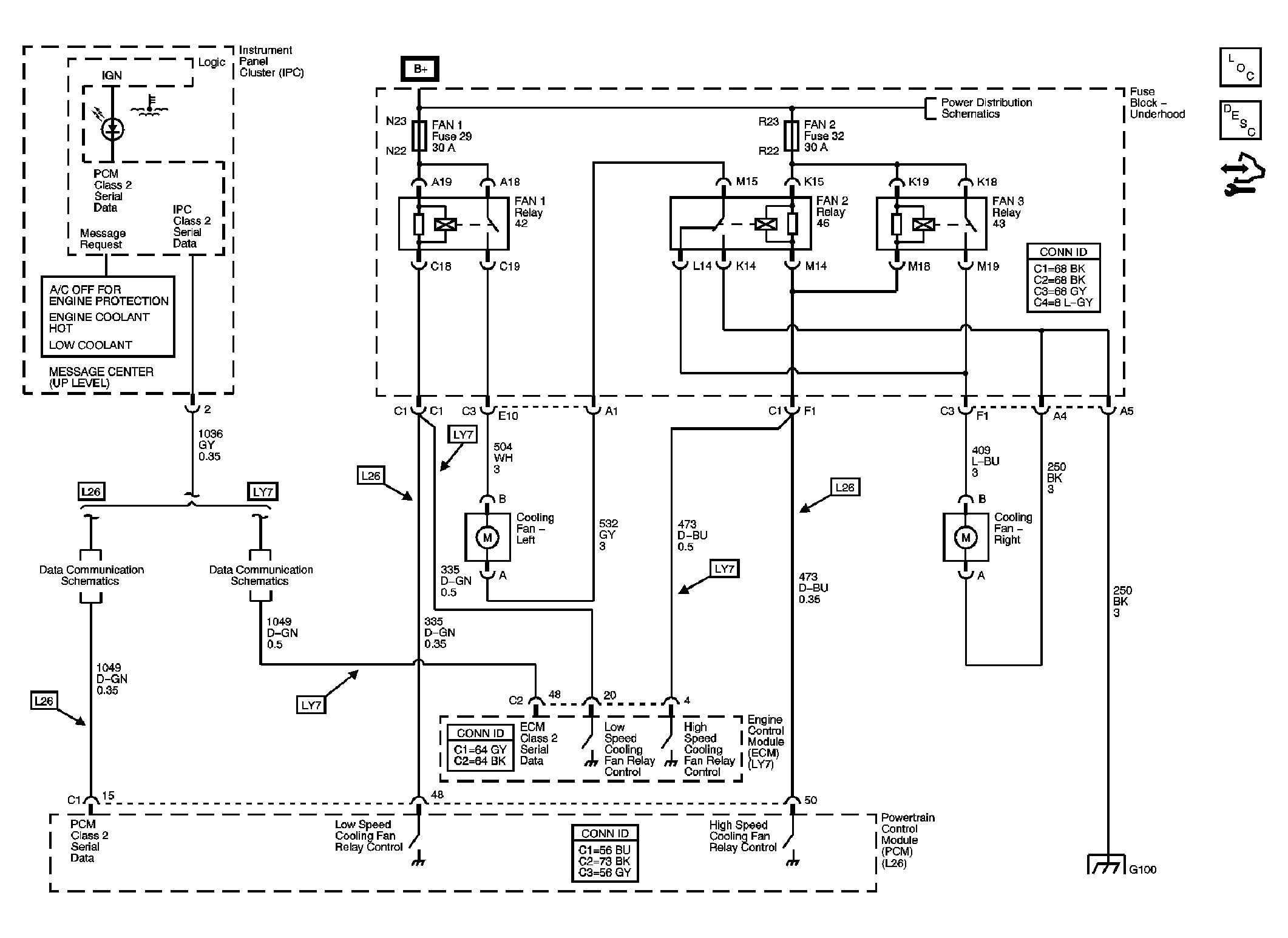

Fig 1: Engine Cooling Schematic - L26/LY7
GM1889470Courtesy of GENERAL MOTORS CORP.
Fig 2: Engine Cooling Schematic - LS4
GM1979691Courtesy of GENERAL MOTORS CORP.
