Radiator Inlet Hose Replacement (LS4)

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

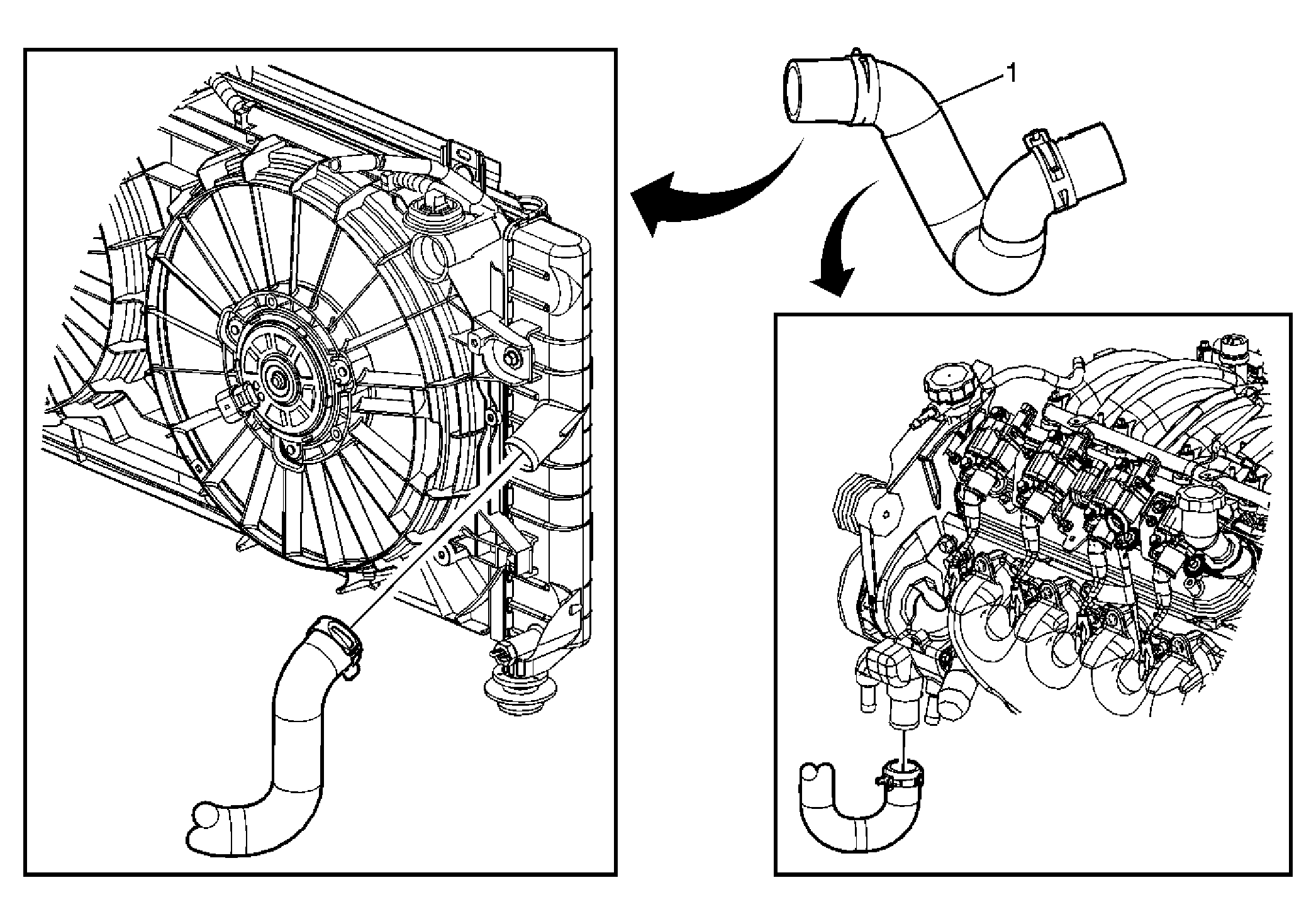

Fig 1: Replacing Inlet Radiator Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Drain the cooling system. Refer to Cooling System Draining and Filling (L26, LY7 GE 47716 Fill) or Cooling System Draining and Filling (L26 Static Fill) or Cooling System Draining and Filling (LY7 Static Fill) or Cooling System Draining and Filling (LS4 GE47716 Fill) or Cooling System Draining and Filling (LS4 Static Fill) .
1	Hose, Radiator Inlet Tip: Using J 38185 reposition the radiator inlet hose clamps. See Special Tools .

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Drain the cooling system. Refer to Cooling System Draining and Filling (L26, LY7 GE 47716 Fill) or Cooling System Draining and Filling (L26 Static Fill) or Cooling System Draining and Filling (LY7 Static Fill) or Cooling System Draining and Filling (LS4 GE47716 Fill) or Cooling System Draining and Filling (LS4 Static Fill) .

Hose, Radiator Inlet
Tip: Using J 38185 reposition the radiator inlet hose clamps. See Special Tools .
