Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

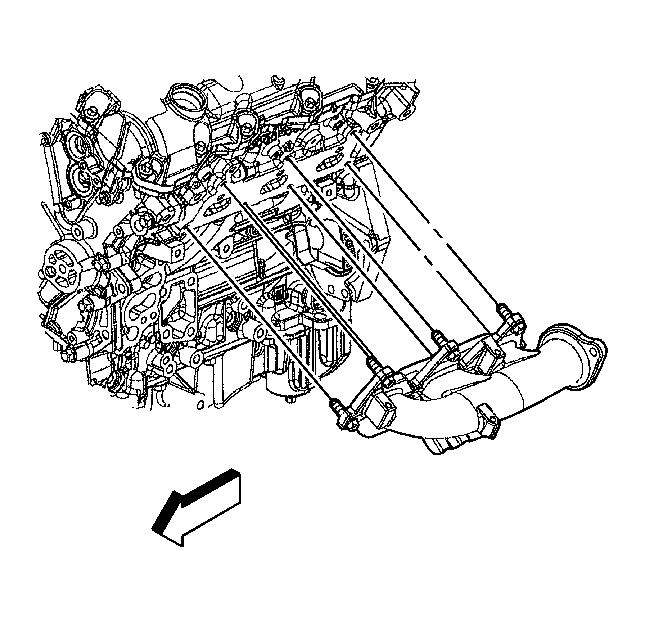

Fig 1: View Of Exhaust Manifold

Courtesy of GENERAL MOTORS CORP.

Install one exhaust manifold bolt through a bolt hole in the manifold.
Install the NEW exhaust manifold gasket onto the bolt.
Position the exhaust manifold to the cylinder head.
Install the exhaust manifold using the one installed bolt until snug.

NOTE: Refer to Fastener Notice .

Install the remaining exhaust manifold bolts.
Tighten: Tighten the bolts to 20 N.m (15 lb ft).

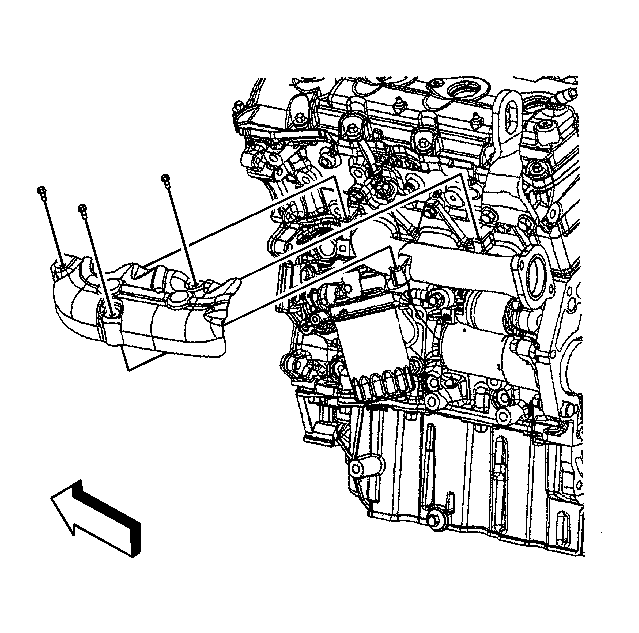

Fig 2: Identifying Exhaust Manifold Heat Shield

Courtesy of GENERAL MOTORS CORP.

Install the exhaust manifold heat shield.
Install the exhaust manifold heat shield bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

Fig 3: Identifying Exhaust Crossover Pipe Nuts & Studs

Courtesy of GENERAL MOTORS CORP.

Install the exhaust crossover pipe to exhaust manifold nuts (5).
Tighten: Tighten the nuts to 34 N.m (25 lb ft).

Fig 4: View Of Bolt & Nut For Engine Mount Strut At Engine Mount Strut Bracket On Upper Radiator Support

Courtesy of GENERAL MOTORS CORP.

Install the left and right engine mount strut through bolts.
Tighten: Tighten the bolts to 48 N.m (35 lb ft).
Install the oil lever indicator and tube. Refer to Oil Level Indicator and Tube Replacement .
