Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

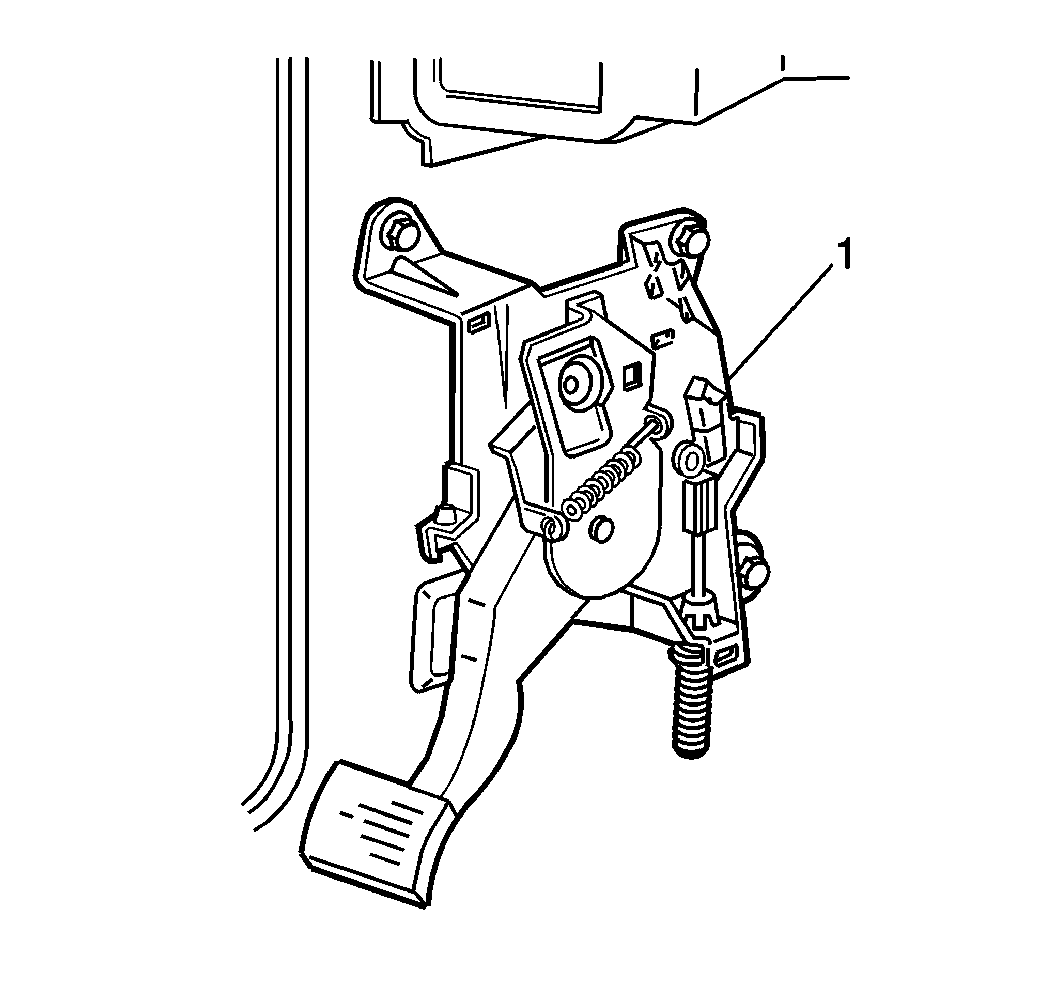

    Fig 1: Identifying Parking Brake Indicator Switch
    GM177084Courtesy of GENERAL MOTORS CORP.
  1. Install the parking brake indicator switch (1).
    2. NOTE: Refer to Fastener Notice .
  2. Install the mounting screw.

    Tighten:  Tighten the mounting screw to 3 N.m (26 lb in).

  3. Connect the electrical connector to the switch.

    Check the operation of the switch.

  4. Install the left carpet retainers. Refer to Center Pillar Lower Trim Panel Replacement .
  5. Install the left side instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
