Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tires and wheels. Refer to Tire and Wheel Removal and Installation .

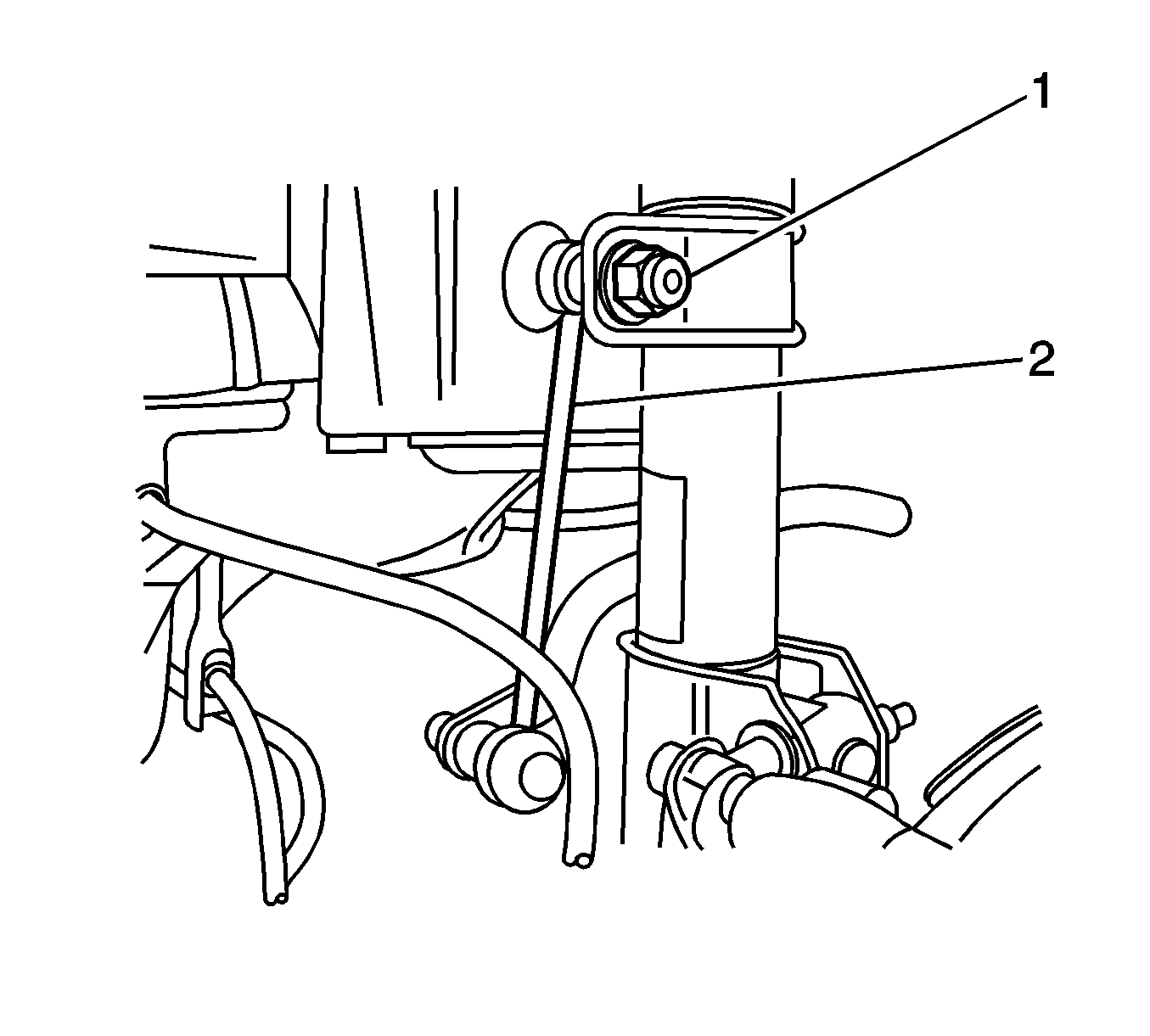

    3. Fig 1: View Of Stabilizer Shaft Link
    GM614968Courtesy of GENERAL MOTORS CORP.
  3. Remove the left and right stabilizer shaft link lower nuts from the stabilizer shaft links (1).
    4. Fig 2: Removing/Installing Clamp Bolts & Stabilizer Shaft
    GM1209600Courtesy of GENERAL MOTORS CORP.
  4. Remove the clamp bolts from the stabilizer shaft.
  5. Remove the stabilizer shaft from the rear suspension support.
