Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
    3. Fig 1: Scribing Strut To Knuckle
    GM385558Courtesy of GENERAL MOTORS CORP.
  3. Scribe the strut to the knuckle.
  4. Remove the bearing/hub assembly. Refer to Rear Wheel Bearing and Hub Replacement .
  5. Remove the rear wheel spindle rods from the knuckle. Refer to Spindle Rod Replacement .

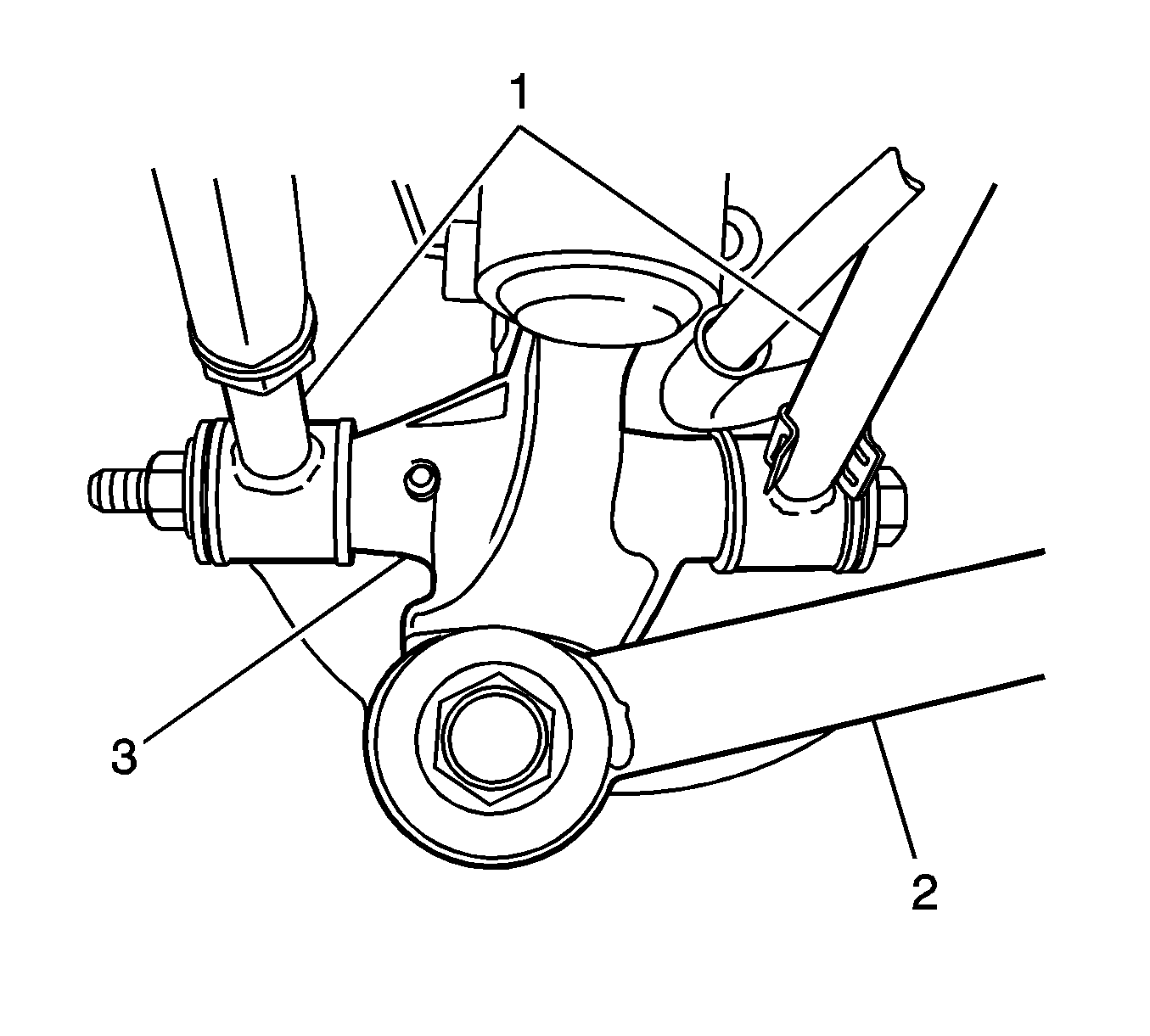

    6. Fig 2: View Of Trailing Arm & Knuckle
    GM1209586Courtesy of GENERAL MOTORS CORP.
  6. Remove the trailing arm (2) from the knuckle (3). Refer to Trailing Arm Replacement .

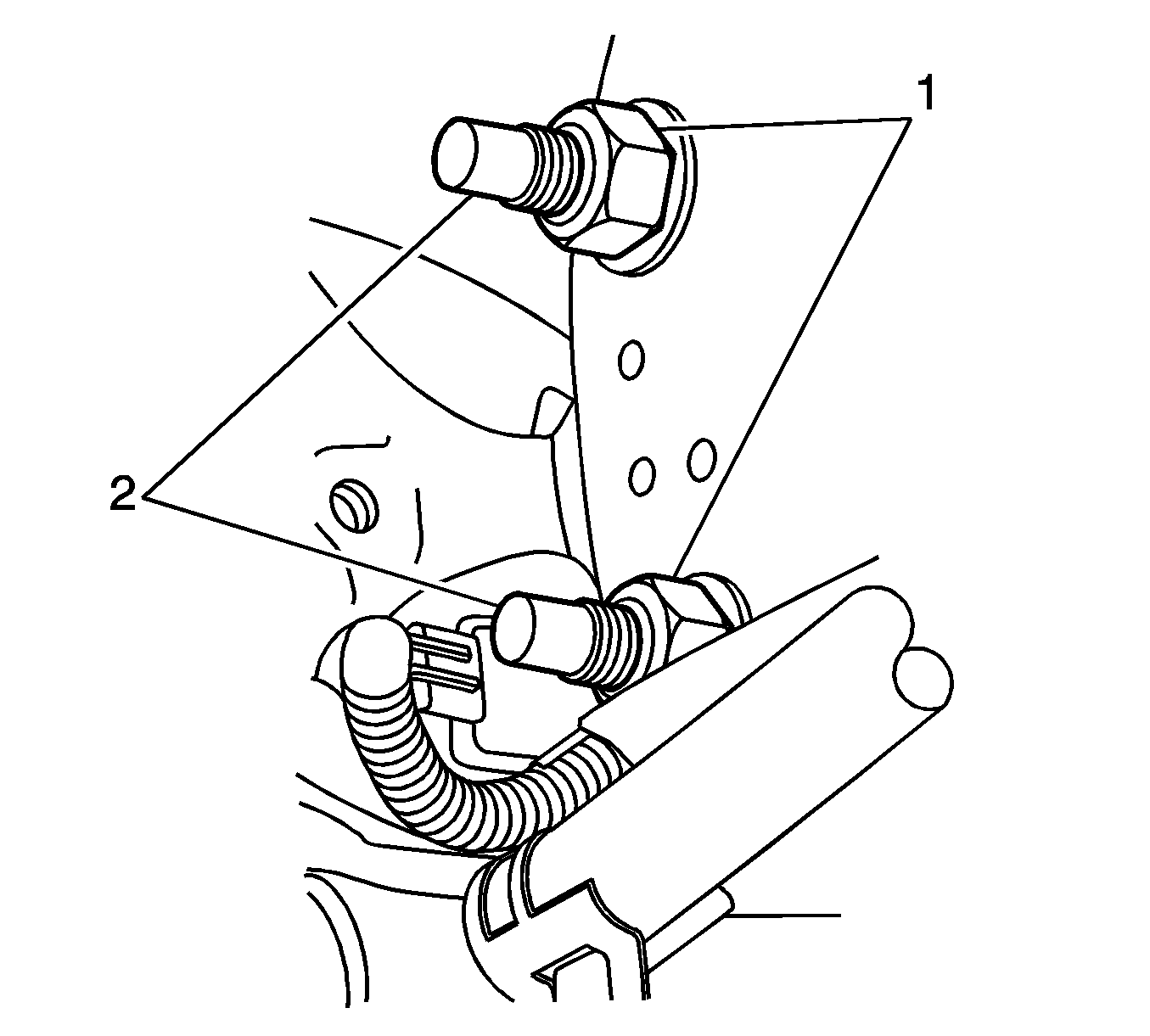

    7. Fig 3: View Of Rear Strut & Knuckle
    GM1209590Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear strut to knuckle bolts (2) and the nuts (1). Refer to Strut Assembly Replacement .
  8. Remove the knuckle (5) from the vehicle.
