Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

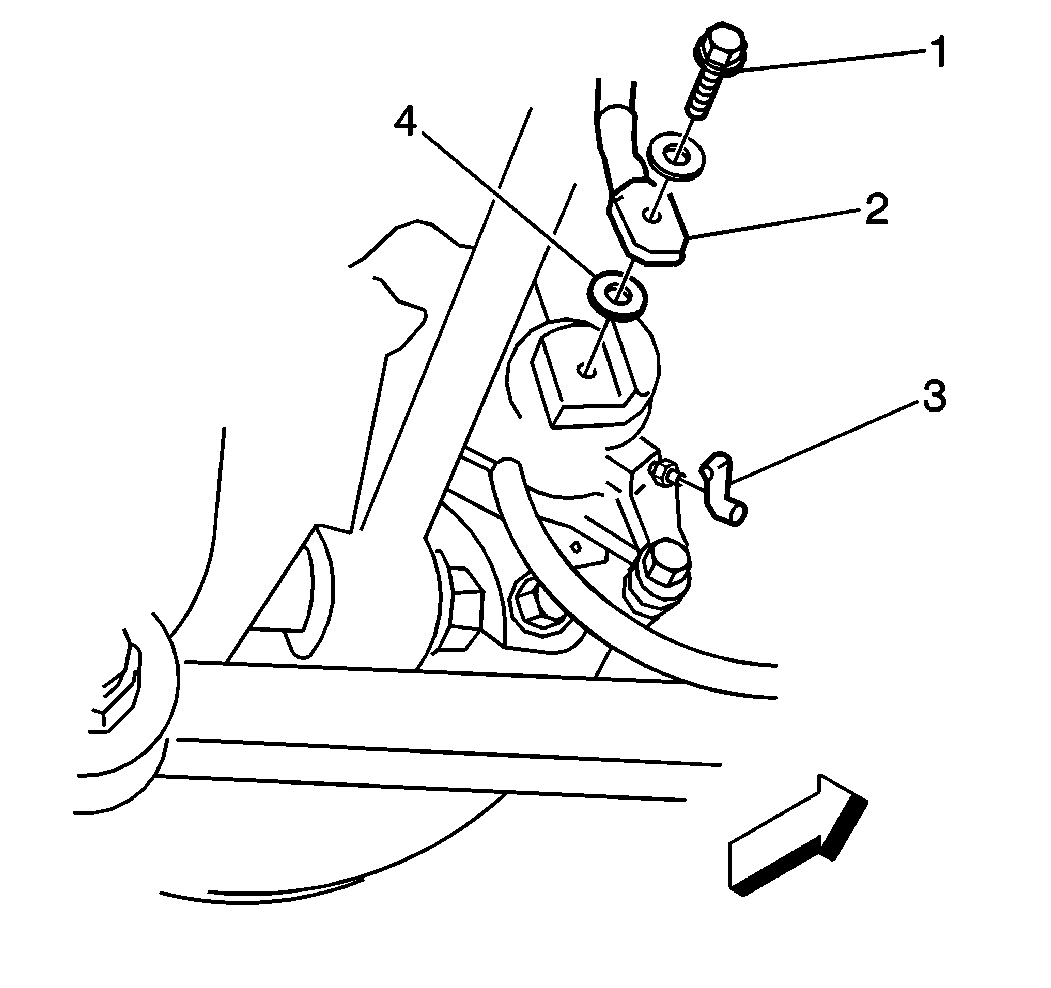

Fig 1: View Of Rear Brake Hose At Caliper

Courtesy of GENERAL MOTORS CORP.

Position the brake hose in the vehicle.

IMPORTANT: Install NEW copper brake hose gaskets (4).

Assemble the NEW copper brake hose gaskets (4), and the brake hose bolt (1) to the brake hose (2).

NOTE: Refer to Fastener Notice .

Install the brake hose to caliper bolt (1) to the brake caliper.
While installing the right rear brake hose to caliper, hold up while tightening bolt.

Tighten: Tighten the brake hose to brake caliper bolt to 54 N.m (40 lb ft).
With the weight of the vehicle on the suspension, install the brake hose into the bracket.
- There should not be any kinks in the hose.
- Align the hose fitting with the notch in the bracket. Use the hose paint stripe as a visual aid.
Install the retainer onto the hose fitting at the bracket.
Remove the rubber cap or plug from the exposed brake pipe fitting end.
Connect the brake pipe fitting to the brake hose:
- Use a backup wrench on the hose fitting.
- Do not bend the bracket or pipe.
  Tighten: Tighten the brake pipe fitting to 18 N.m (13 lb ft).
Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Ensure that the hose does not make contact with any part of the suspension. If the hose makes contact, remove the hose and correct the condition.
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
Lower the vehicle.
