Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

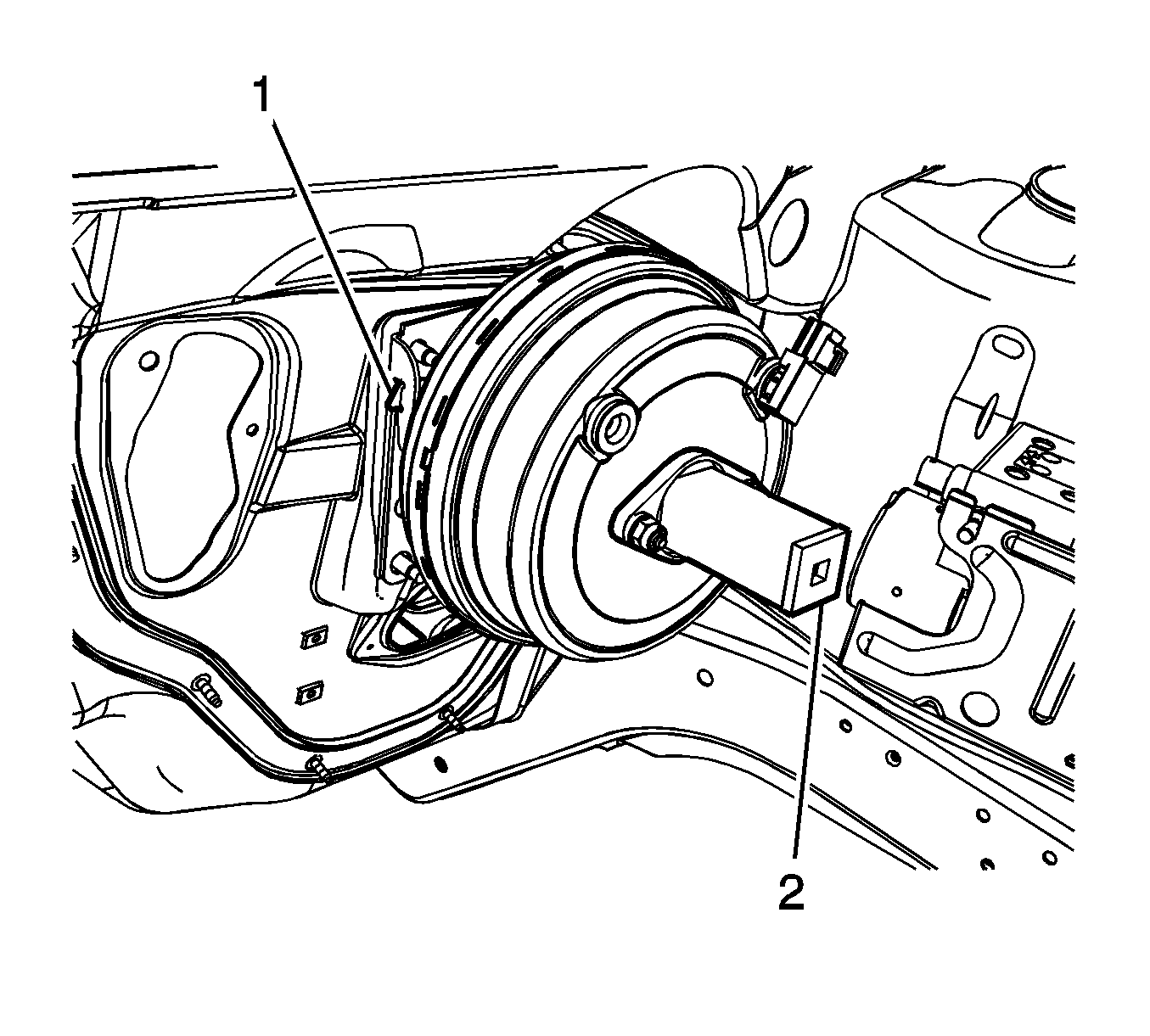

    Fig 1: View Of Power Brake Booster Assembly
    GM1994008Courtesy of GENERAL MOTORS CORP.
  1. Install the vacuum power brake booster.
  2. Press the vacuum power brake booster locking tab (1) while rotating the J 22805-B  (2) clockwise. See Special Tools .

    Ensure the locking tab is fully engaged in the vacuum brake booster mounting plate.

  3. Remove the J 22805-B  from the vacuum power brake booster and discard the master cylinder nuts. See Special Tools .

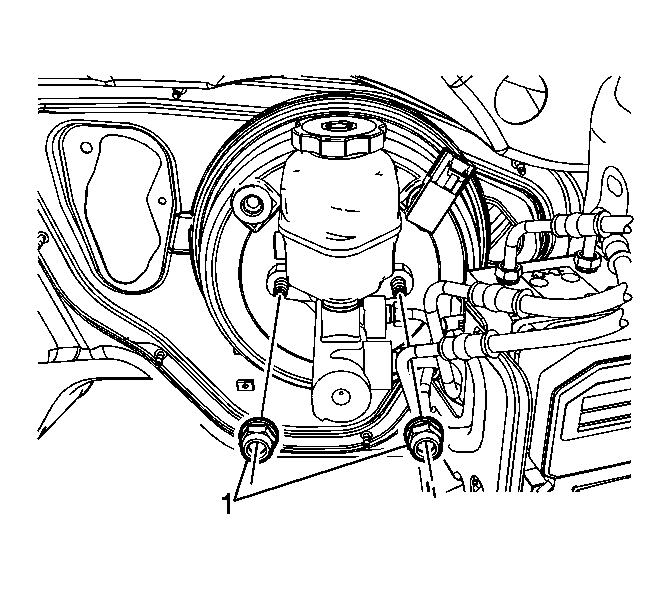

    4. Fig 2: Identifying Master Cylinder Nuts
    GM1994005Courtesy of GENERAL MOTORS CORP.
  4. Install the master cylinder to the vacuum power brake booster.
    5. NOTE: Refer to Fastener Notice .
  5. Install new master cylinder nuts (1).

    Tighten:  Tighten the nuts to 33 N.m (24 lb ft).

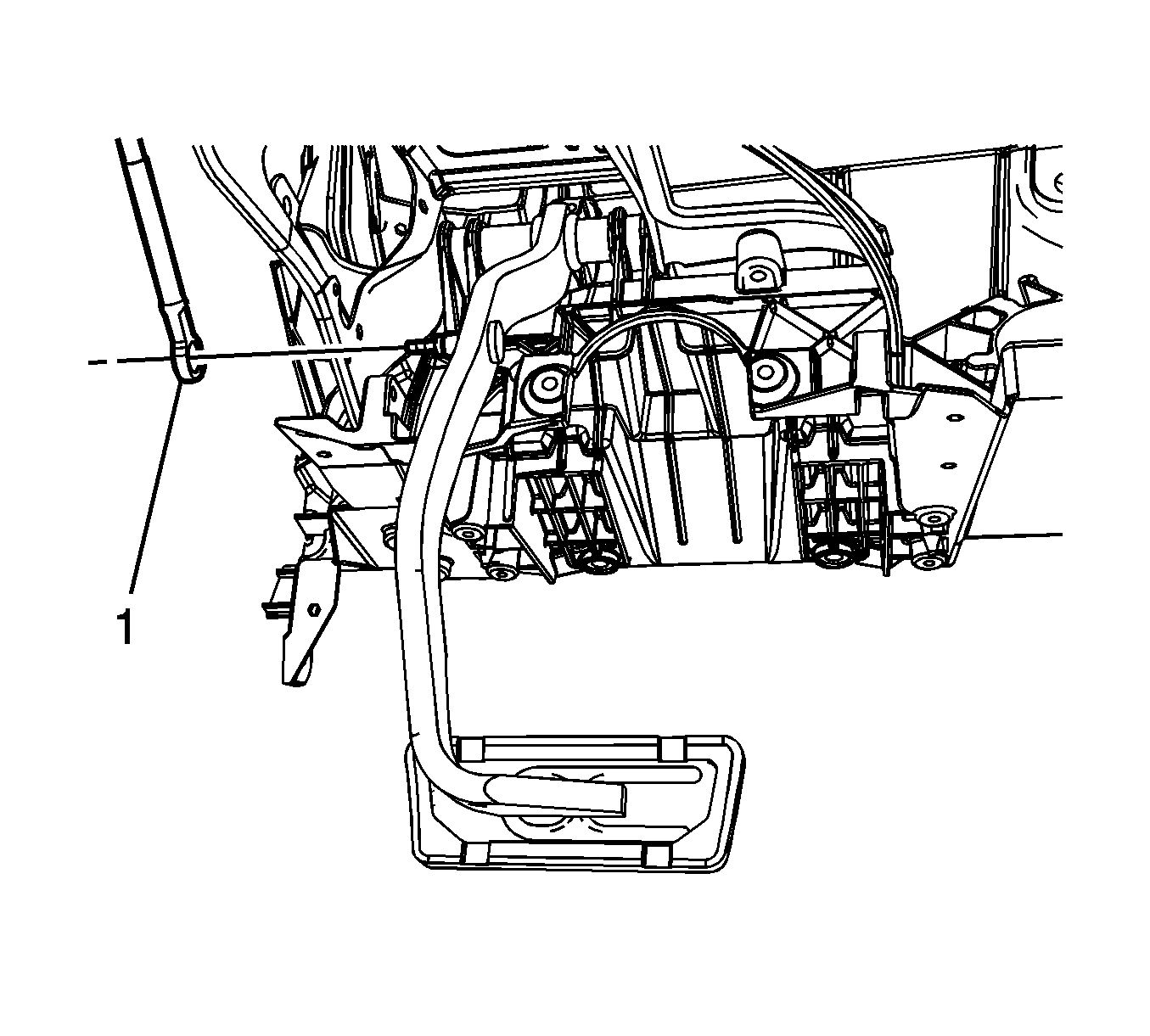

    6. Fig 3: View Of Brake Pedal Pushrod Nut
    GM1993998Courtesy of GENERAL MOTORS CORP.
  6. Install the vacuum power brake pushrod (1) to the brake pedal pin.

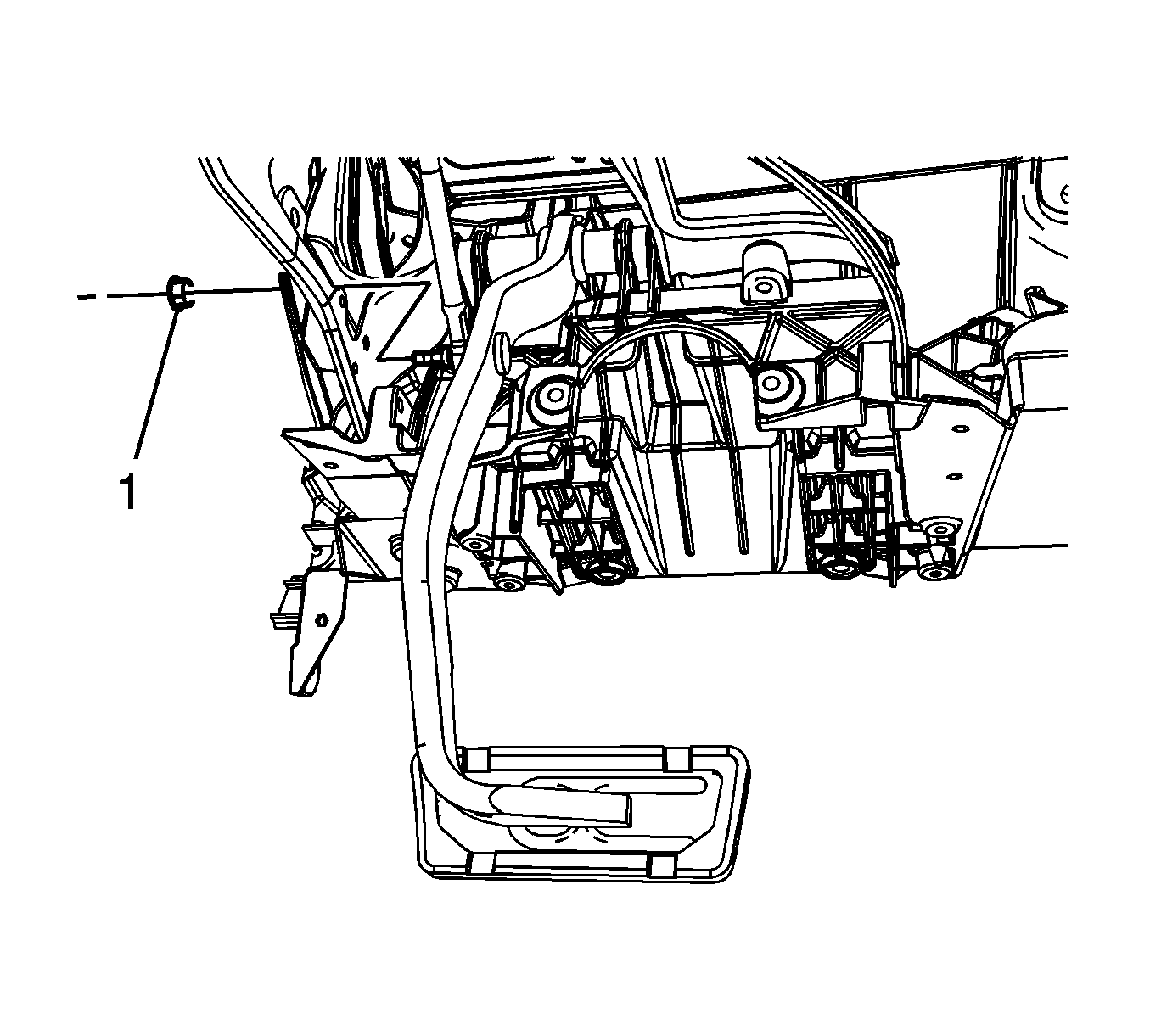

    7. Fig 4: Identifying Brake Pedal Pushrod Bushing
    GM1993997Courtesy of GENERAL MOTORS CORP.
  7. Install the vacuum power brake booster pushrod bushing (1).

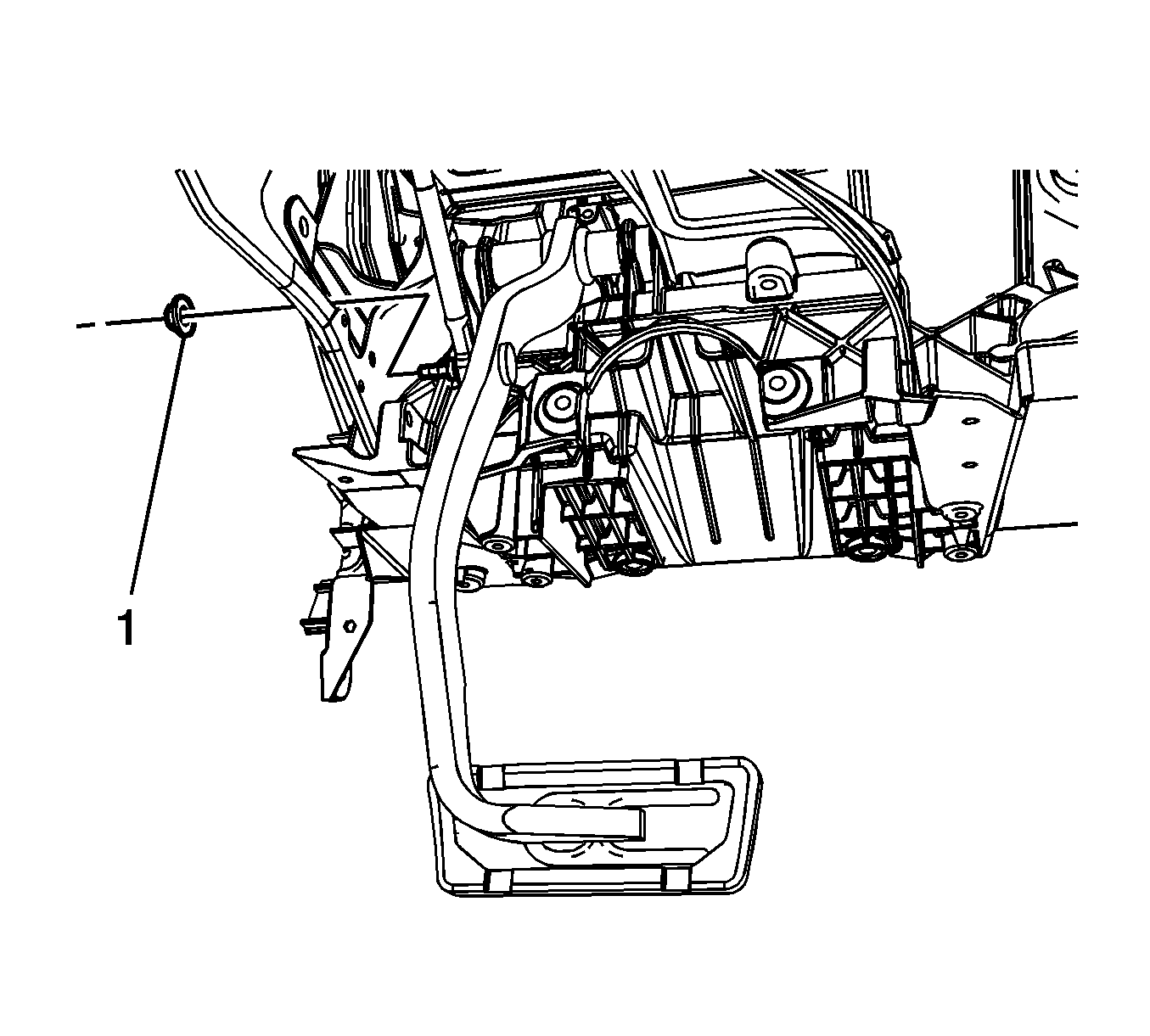

    8. Fig 5: Identifying Brake Pedal Pushrod Nut
    GM1993996Courtesy of GENERAL MOTORS CORP.
  8. Install the vacuum power brake booster pushrod nut (1).

    Tighten:  Tighten the nut to 13 N.m (115 lb in).

  9. Install the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .

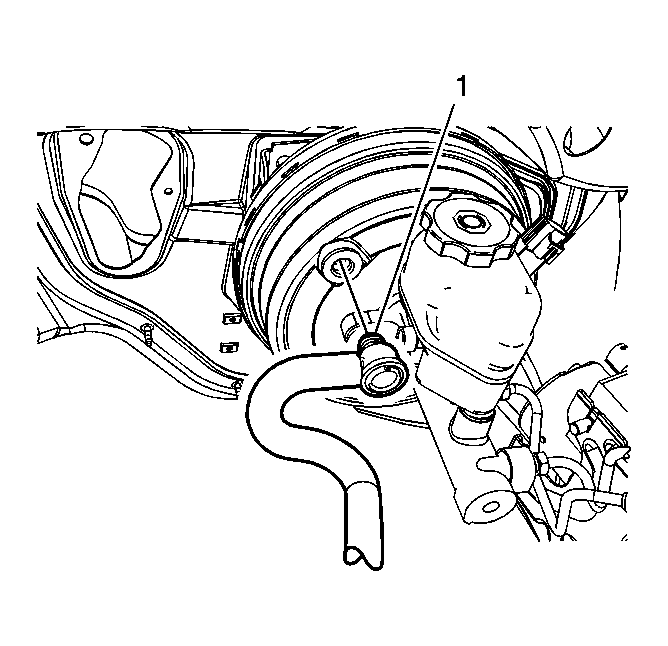

    10. Fig 6: Identifying Vacuum Power Brake Booster Check Valve & Hose Assembly
    GM1994002Courtesy of GENERAL MOTORS CORP.
  10. Connect the vacuum power brake booster check valve and hose assembly (1).
  11. Connect the vacuum power brake booster vacuum sensor electrical connector.
  12. Install the exhaust crossover pipe. Refer to Exhaust Crossover Pipe Replacement (3.6L) or Exhaust Crossover Pipe Replacement (3.8L) .
  13. Install the BPMV bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement .
  14. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  15. Install the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
