Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
  2. Push the body control module (BCM) up and move the bottom of the BCM away from and out of the mounting bracket slot. Position the BCM aside.
  3. Remove the brake pedal position sensor. Refer to Brake Pedal Position Sensor Replacement .
  4. Release the wiring harness clips from the bracket.
    5. Fig 1: Identifying Brake Pedal Pushrod Nut
    GM1993996Courtesy of GENERAL MOTORS CORP.
  5. Remove the brake pedal pushrod nut (1).
    6. Fig 2: Identifying Brake Pedal Pushrod Bushing
    GM1993997Courtesy of GENERAL MOTORS CORP.
  6. Remove the brake pedal pushrod bushing (1).
    7. Fig 3: View Of Brake Pedal Pushrod Nut
    GM1993998Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the brake pedal pushrod (1) from the brake pedal.

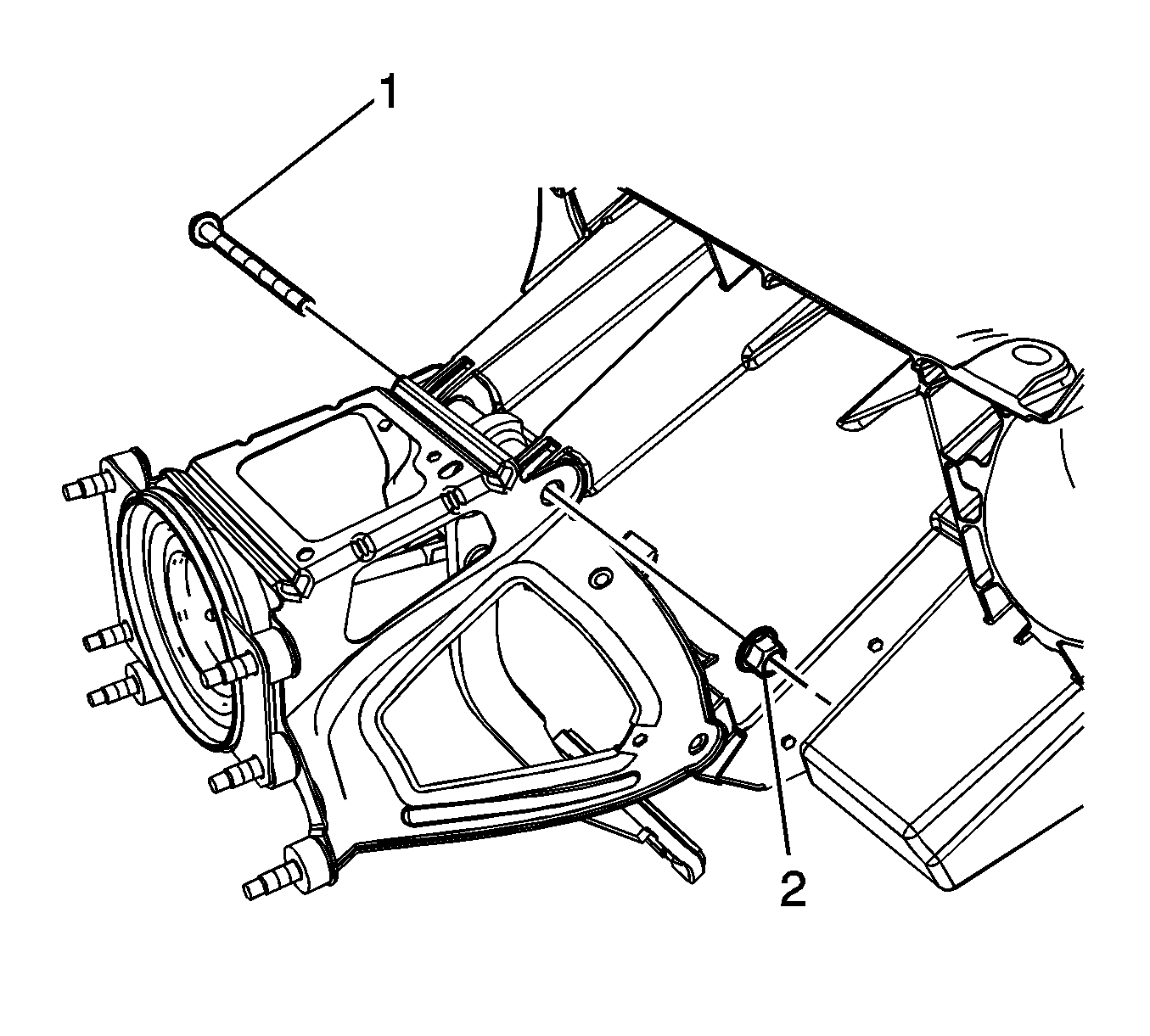

    8. Fig 4: View Of Brake Pedal Assembly, Bolt & Nut
    GM1993999Courtesy of GENERAL MOTORS CORP.
  8. Remove the brake pedal bolt (1) and nut (2).

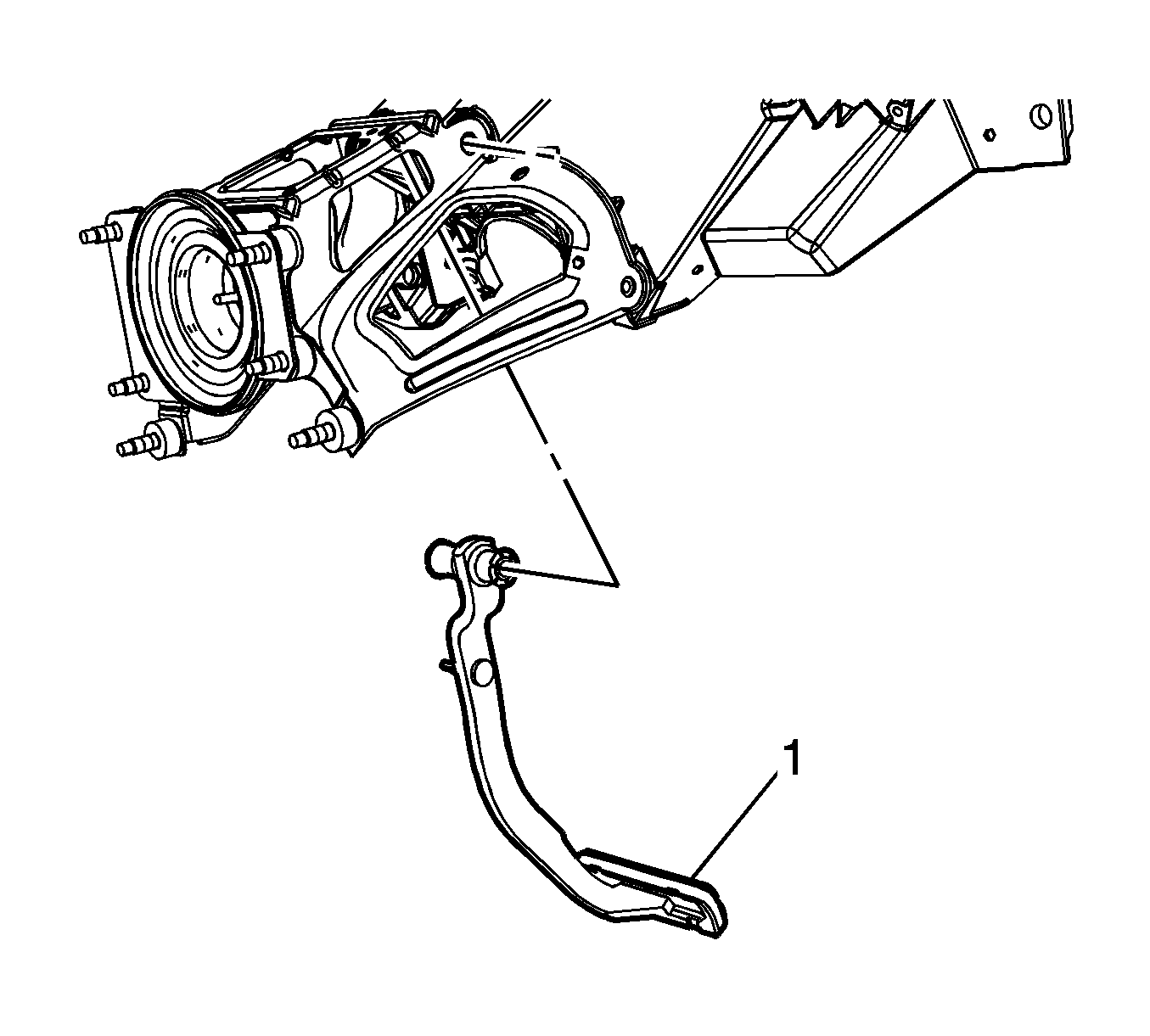

    9. Fig 5: View Of Brake Pedal Assembly
    GM1994000Courtesy of GENERAL MOTORS CORP.
  9. Remove the brake pedal (1).
    10. Fig 6: View Of Brake Pedal Pivot Bushing & Spacer
    GM1994001Courtesy of GENERAL MOTORS CORP.
  10. Remove the brake pedal pivot bushings (1) and spacer (2).
