Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

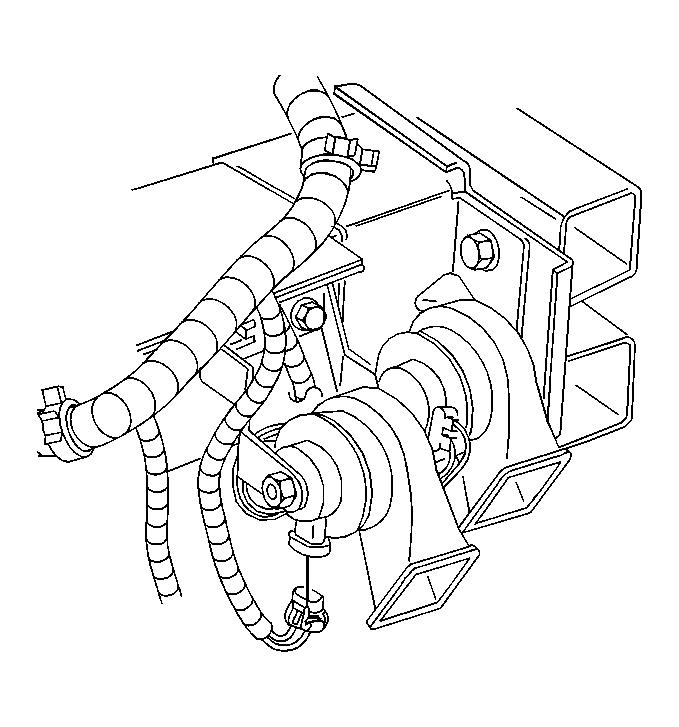

    Fig 1: Identifying Horn Electrical Connector
    GM182475Courtesy of GENERAL MOTORS CORP.
  1. Open the hood.
  2. Remove the RH headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb Replacement .
  3. Disconnect the horn electrical connector.
    4. Fig 2: View Of Horn Bracket & Bolts
    GM324755Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn bracket bolt.
  5. Remove the horn from the frame rail extension.
