Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating BEC Housing & Nuts
    GM1233274Courtesy of GENERAL MOTORS CORP.
  1. If the junction block housing was removed, perform the following:
    1. Position the junction block housing (1) to the strut tower and insert the lower tab into the slot on the tower.
    2. NOTE: Refer to Fastener Notice .
    3. Install the junction block housing nuts (2) to the studs on the strut tower.

      Tighten:  Tighten the nuts to 3 N.m (27 lb in).

  2. Fig 2: View Of Wiring Harness Connectors & Junction Block
    GM1233272Courtesy of GENERAL MOTORS CORP.
  3. Connect the wiring harness connectors to the junction block.

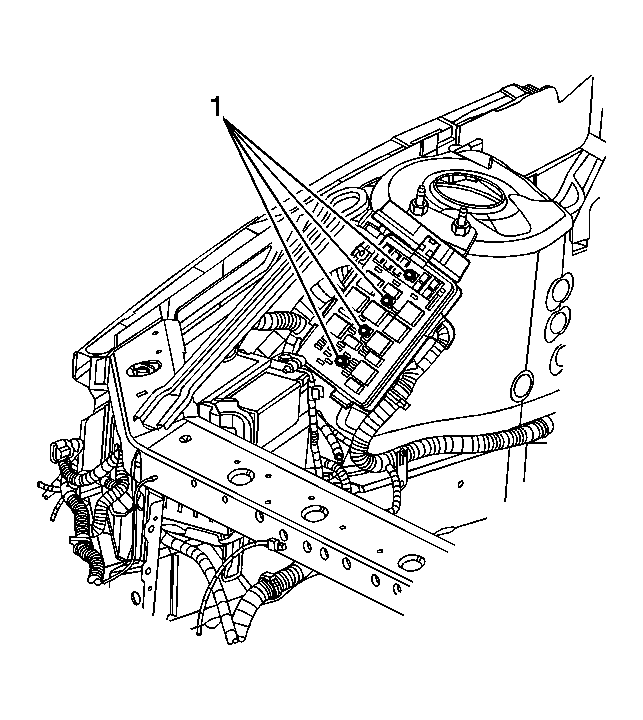

  4. Fig 3: Identifying Retaining Bolts Of Engine, I/P & Forward Lamp Wiring Harness Connectors
    GM1233270Courtesy of GENERAL MOTORS CORP.
  5. Tighten the engine, IP and forward lamp wiring harness connector bolts to the junction block.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

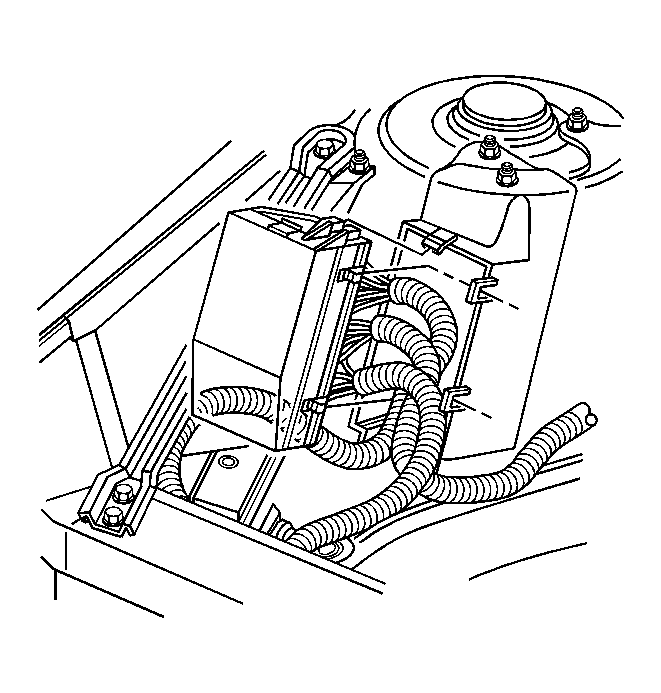

  6. Fig 4: Identifying Tabs & Bussed Electrical Center
    GM1233269Courtesy of GENERAL MOTORS CORP.
  7. Position the junction block to the housing. Align the tabs and press the junction block into place to secure the junction block.

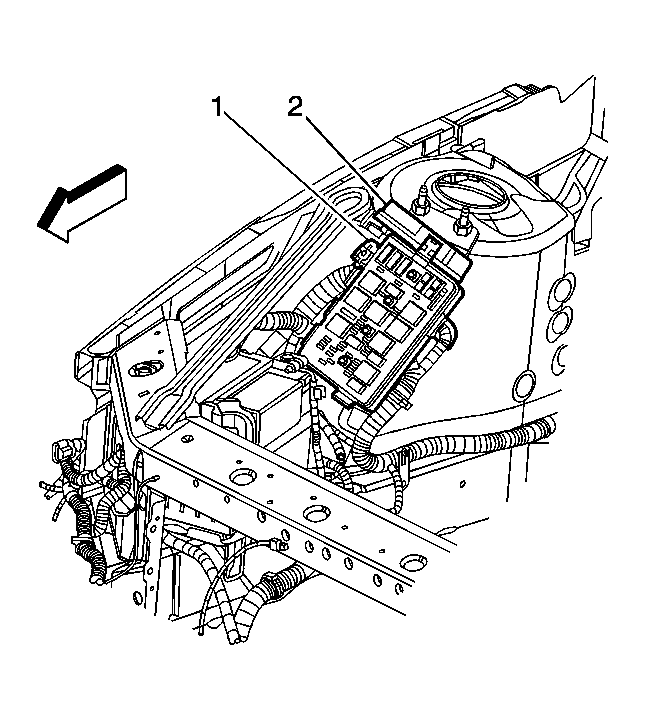

  8. Fig 5: Identifying Bussed Electrical Center & Positive Battery Cable Nut
    GM1233267Courtesy of GENERAL MOTORS CORP.
  9. Install the positive battery cable lead (1) to the stud on the junction block.

    Install the positive cable lead nut to the stud.

    Tighten:  Tighten the nut to 16 N.m (12 lb ft).

  10. Close the cover (2) on the junction block.
  11. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (L26) or Battery Negative Cable Disconnection and Connection (LY7) or Battery Negative Cable Disconnection and Connection (LS4) .
