Rear Bumper Fascia Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

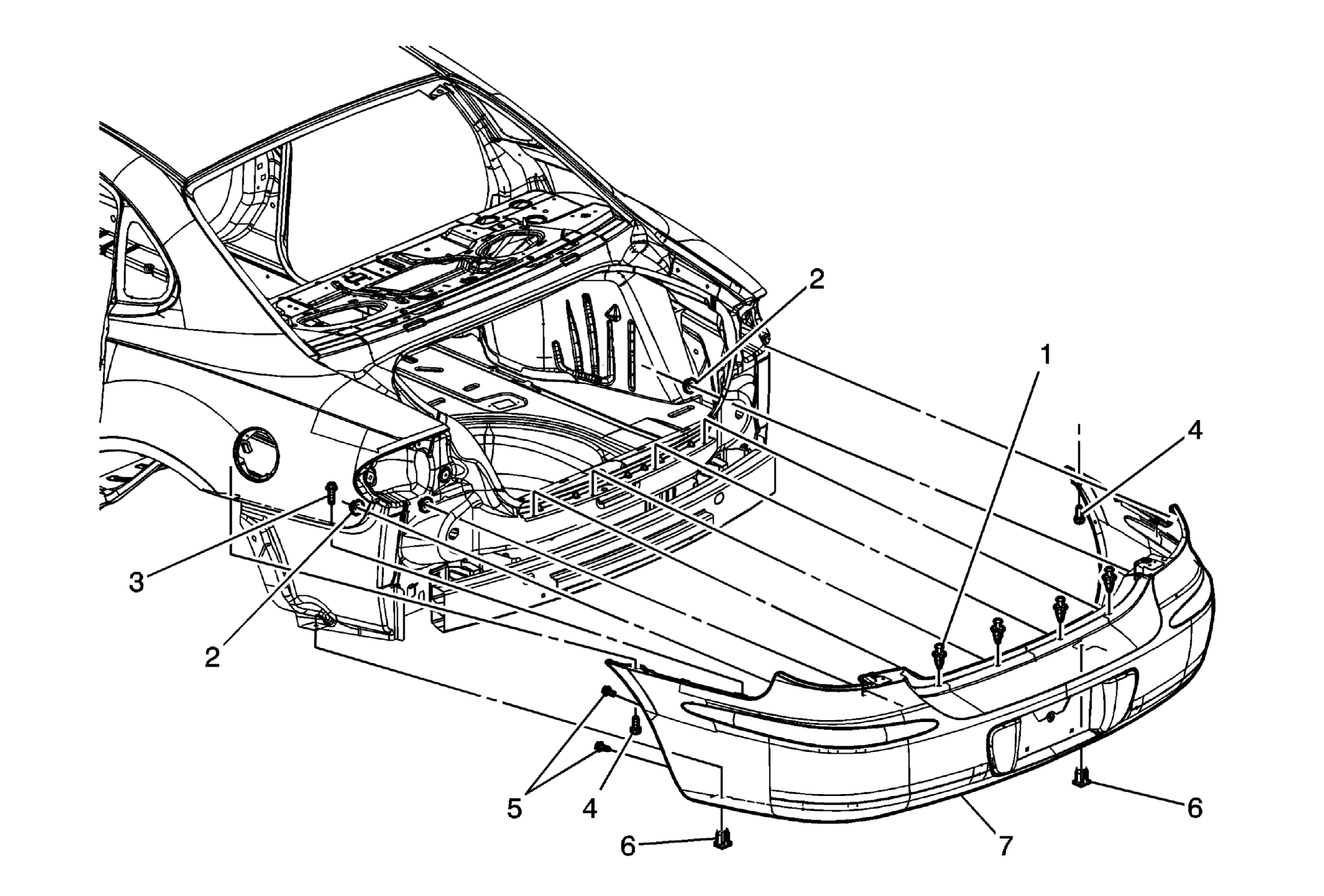

Fig 1: Identifying Rear Bumper Fascia

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement .
1	Rear Fascia Retainer (Qty: 4)
2	Rear Fascia Nut (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 6 N.m (53 lb in)
3	Rear Fascia Bolt - Upper (Qty: 2) Tighten: 10 N.m (88 lb in)
4	Rear Fascia Bolt - Lower (Qty: 2) Tighten: 10 N.m (88 lb in)
5	Wheelhouse Panel Screw (Qty: 4) Tighten: 2 N.m (18 lb in)
6	Rear Fascia Push-In Retainer
7	Rear Fascia Tip: Disconnect the electrical connectors as needed before attempting to remove the fascia. The rear fascia energy absorber is attached to the fascia.
