Rear Bumper Fascia Insert Replacement (Allure (Canadian) & LaCrosse Super)

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

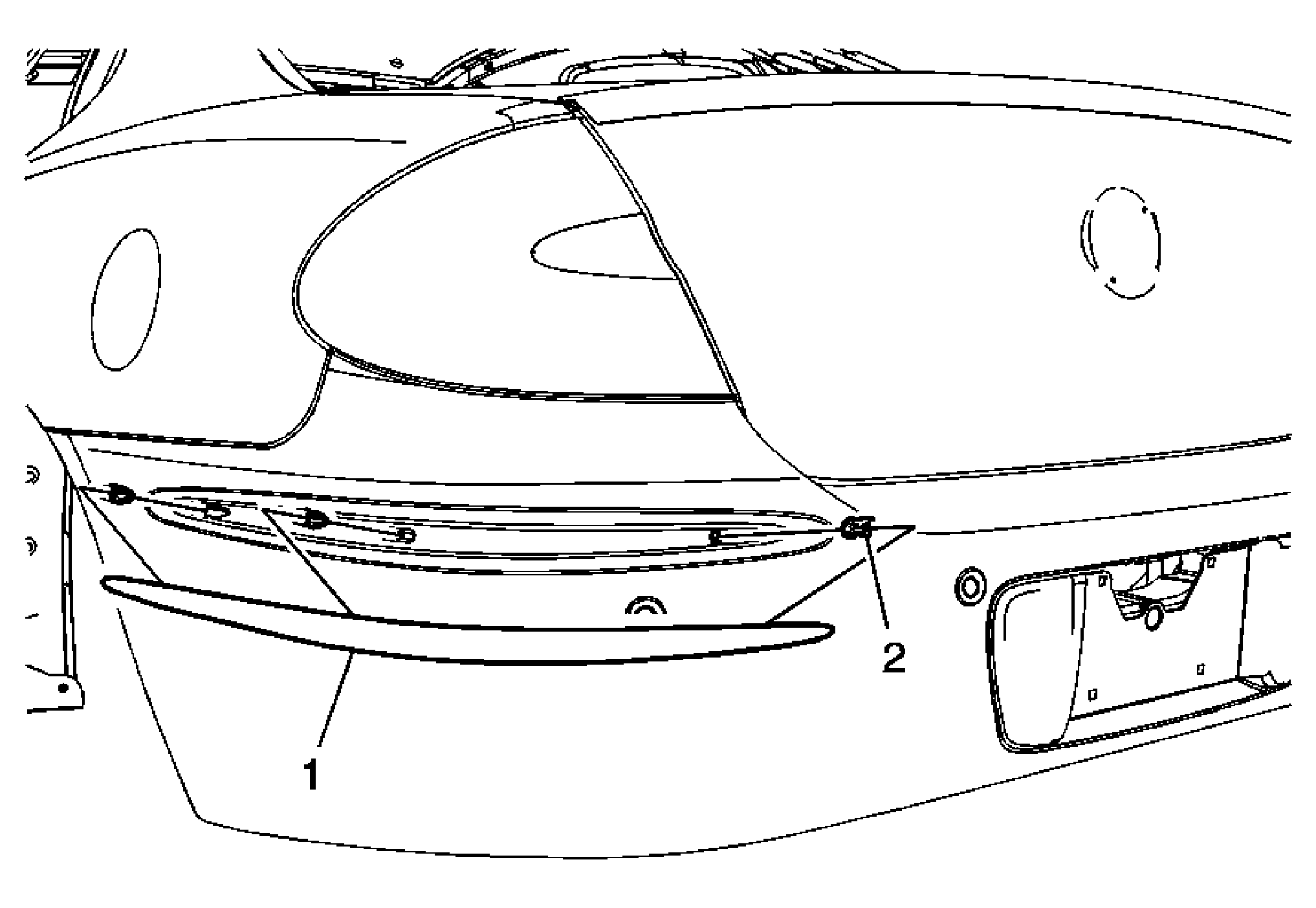

Fig 1: View Of Rear Bumper Fascia Insert (Allure (Canadian) & LaCrosse Super)
GM1972299Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Bumper Fascia Insert
Procedure:
Grasp a corner of the insert and pull outward from the rear bumper fascia in order to release the insert from the retainer clips.
2 Rear Bumper Fascia Insert Clip
Tip:  Replace the retainer clips as needed if damaged or broken.
