Headlamp and Front End Fascia Mount Panel Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

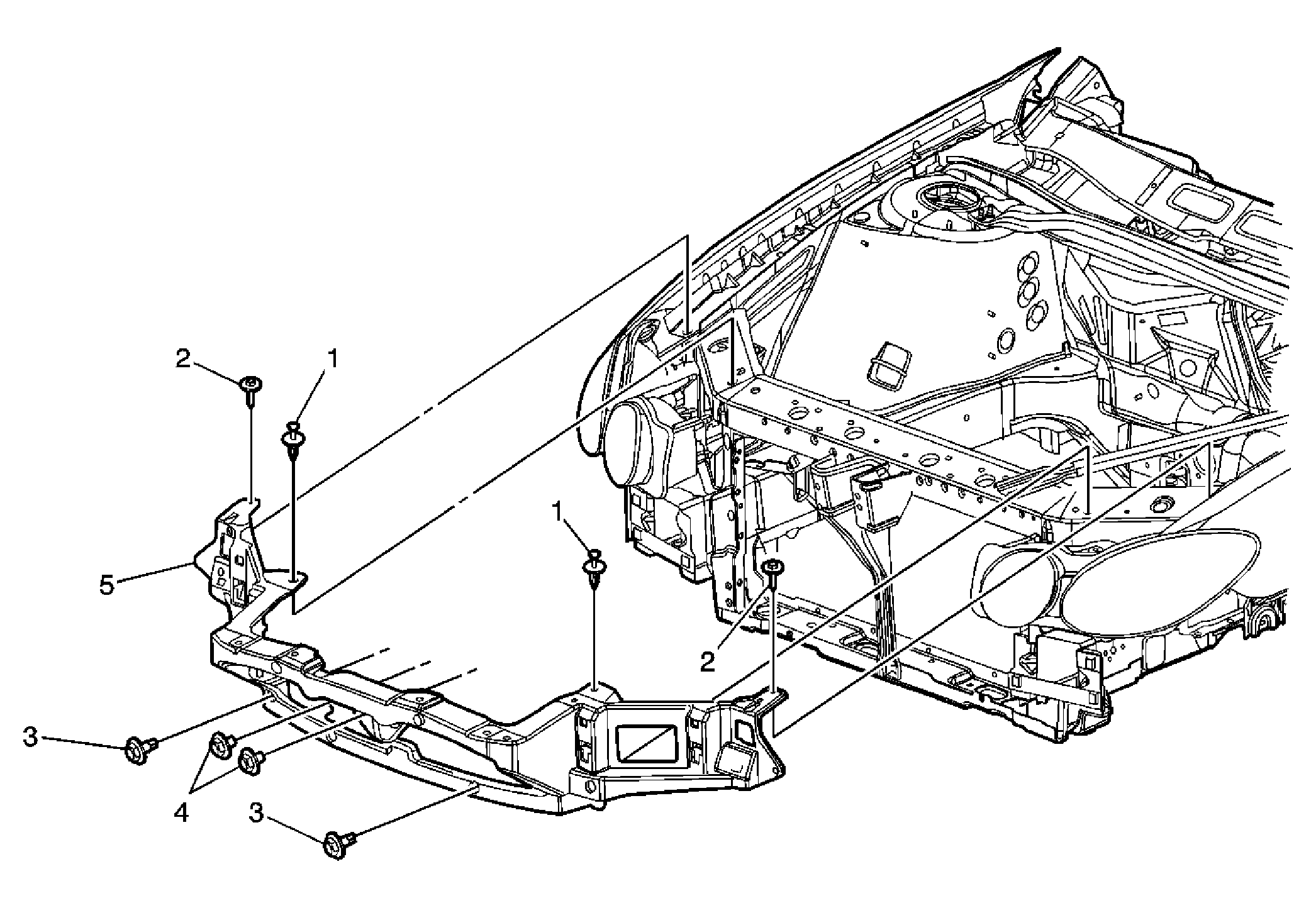

Fig 1: View Of Headlamp & Front End Fascia Mount Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front fascia. Refer to Front Bumper Fascia Replacement . Remove the headlamps. Refer to Headlamp Assembly or Headlamp Bulb Replacement . Remove the radiator support sight shield. Refer to Radiator Support Sight Shield Replacement .
1	Headlamp Mounting Panel Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Headlamp Mounting Panel Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Headlamp Mounting Panel Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
4	Headlamp Mounting Panel Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
5	Headlamp Mounting Panel
