Front Bumper Impact Bar Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

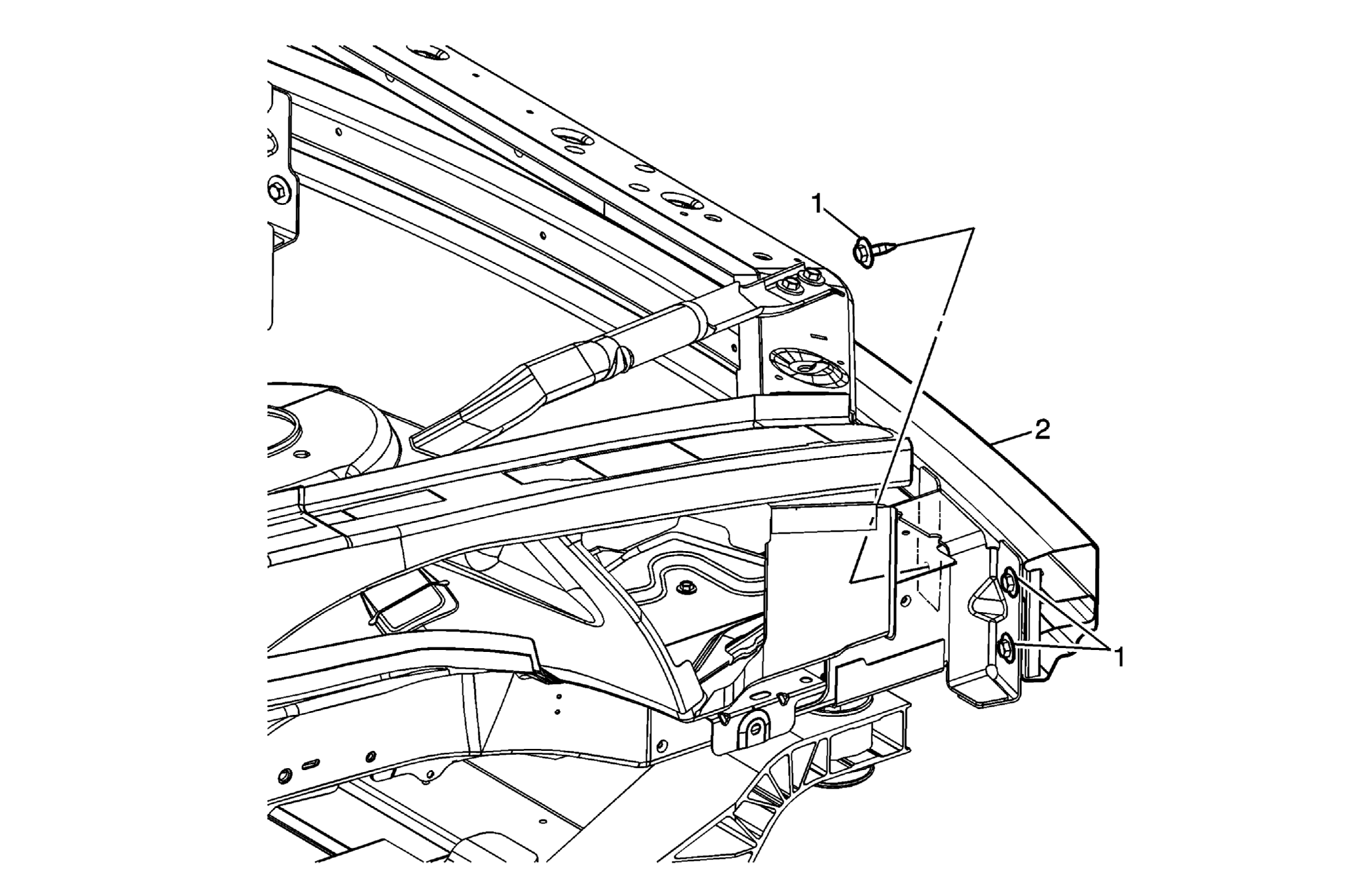

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Bumper Impact Bar Bolts (Qty: 6)
NOTE:
Refer to Fastener Notice
.
Tighten: 25 N.m (18 lb ft) |
| 2 | Front Bumper Bar |
