Luggage Compartment/Rear of Vehicle Component Views

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

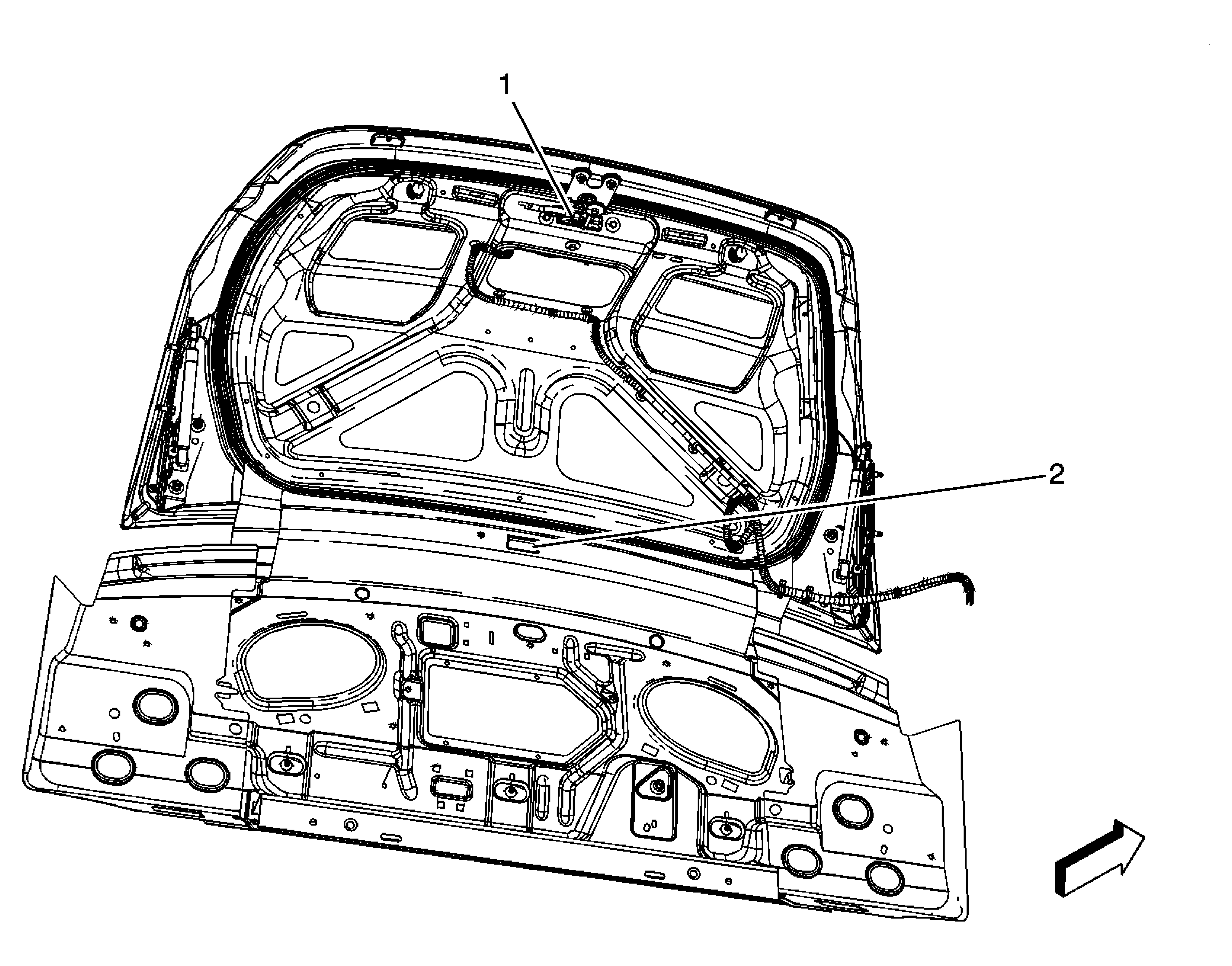

Fig 1: View Of Rear Compartment Lid Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid
2	Rear Compartment Lid Ajar Switch

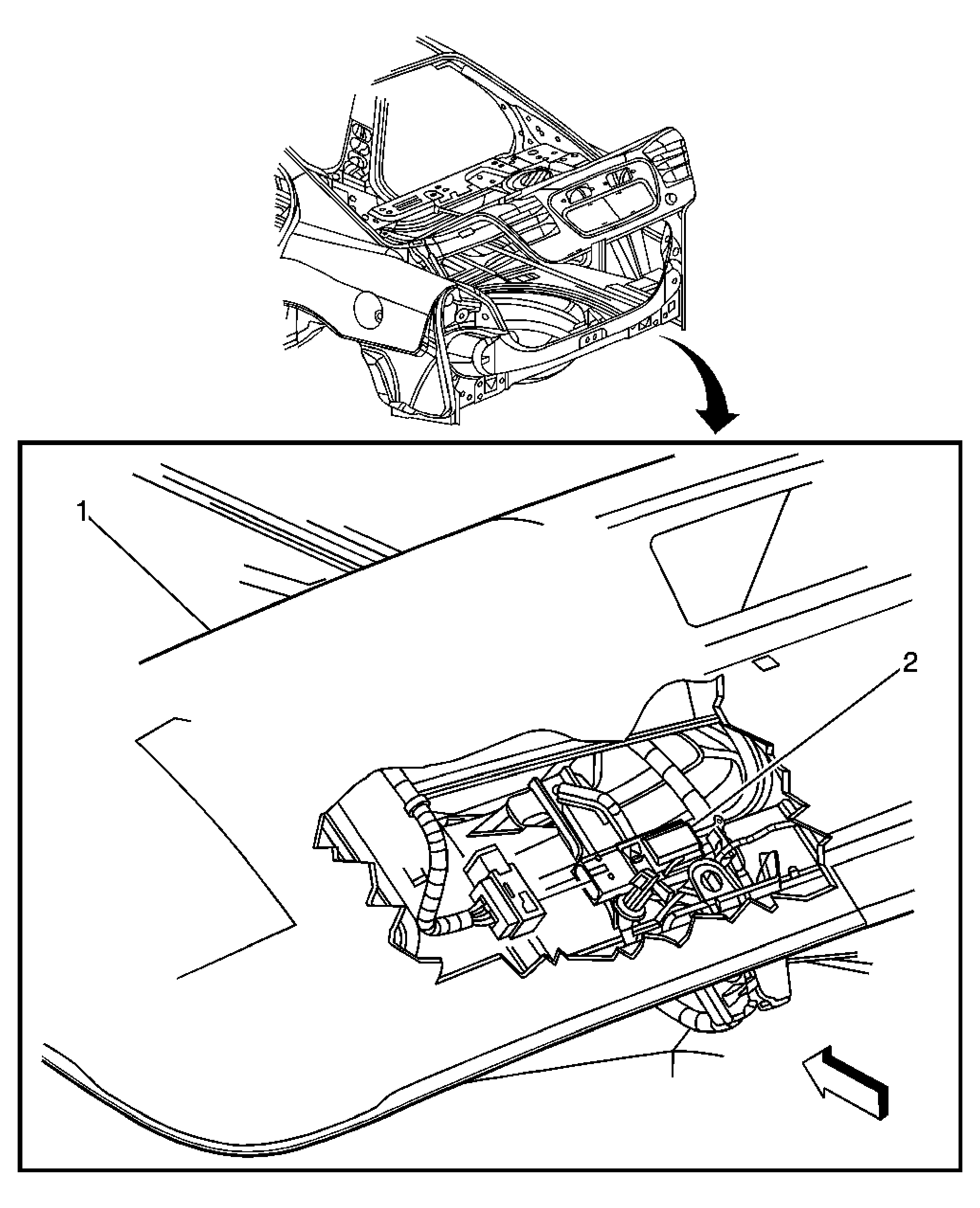

Fig 2: Identifying Decklid Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch
2	Rear Compartment Courtesy Lamp

Fig 3: View Of LH Side Of Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Parking Assist (RPA) Diagnostic Connector

Fig 4: View Of Entertainment/Communication Components (Left Side of Luggage Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Rear Fender Panel
2	Digital Radio Receiver (U2K)

Fig 5: View Of Rear Of Vehicle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Center High Mounted Stop Lamp (CHMSL)
3	Backup Lamp - Right
4	Tail Lamp - Right Upper
5	Tail/Stop and Turn Signal Lamp - Right
6	Marker Lamp - Right
7	Tail Lamp - Right Lower
8	Object Sensor - Right Rear Corner
9	Object Sensor - Right Rear Middle
10	License Lamp - Right
11	License Lamp - Left
12	Object Sensor - Left Rear Middle
13	Object Sensor - Left Rear Corner
14	Tail Lamp - Left Lower
15	Marker Lamp - Left
16	Tail/Stop and Turn Signal Lamp - Left
17	Backup Lamp - Left
18	Tail Lamp - Left Upper
