Fuse Block - Instrument Panel - Bottom View

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

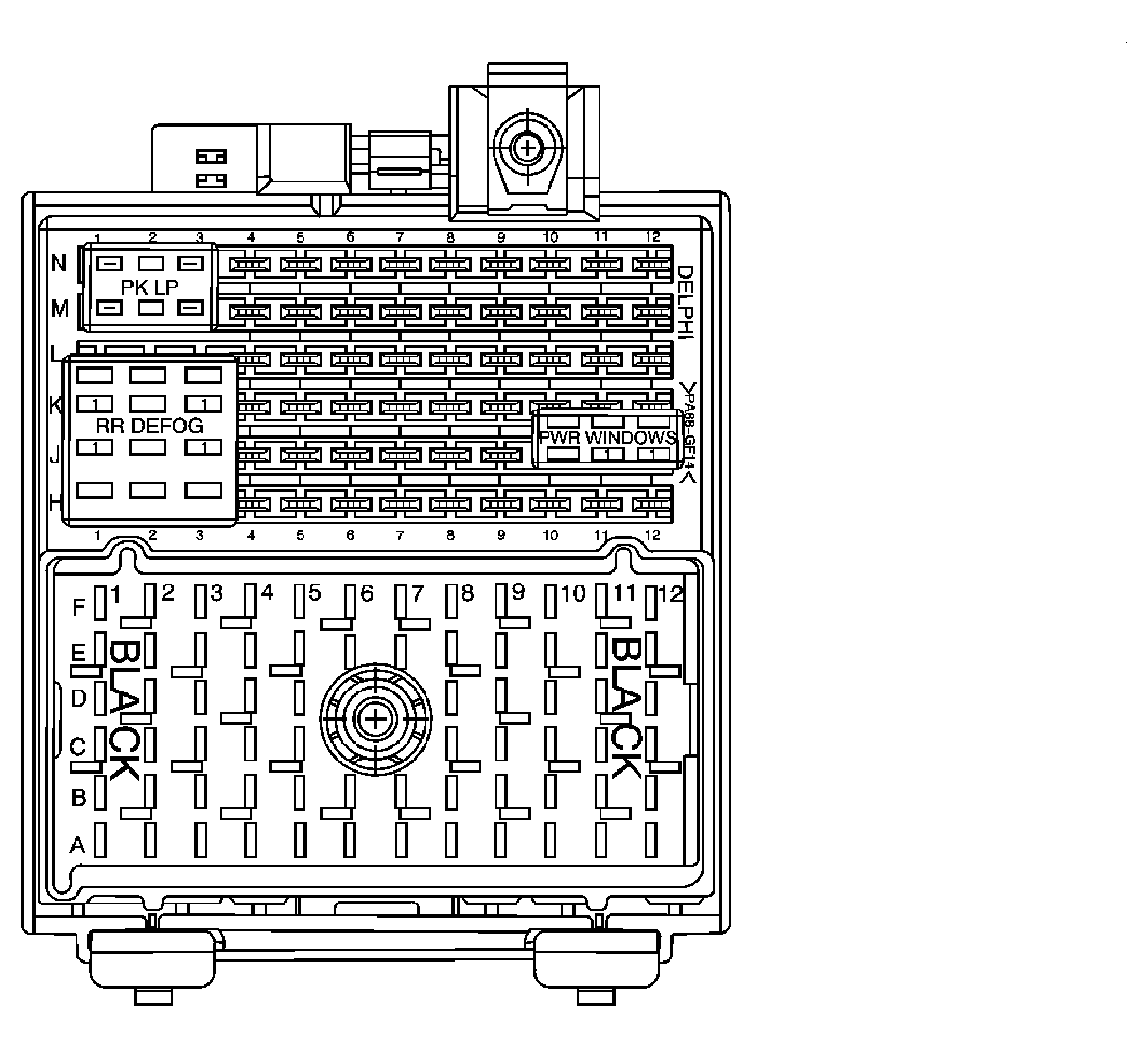

Fig 1: Bottom View Of I/P Fuse Block
GM1306416Courtesy of GENERAL MOTORS CORP.
