Outside Rearview Mirror Motor - Passenger

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

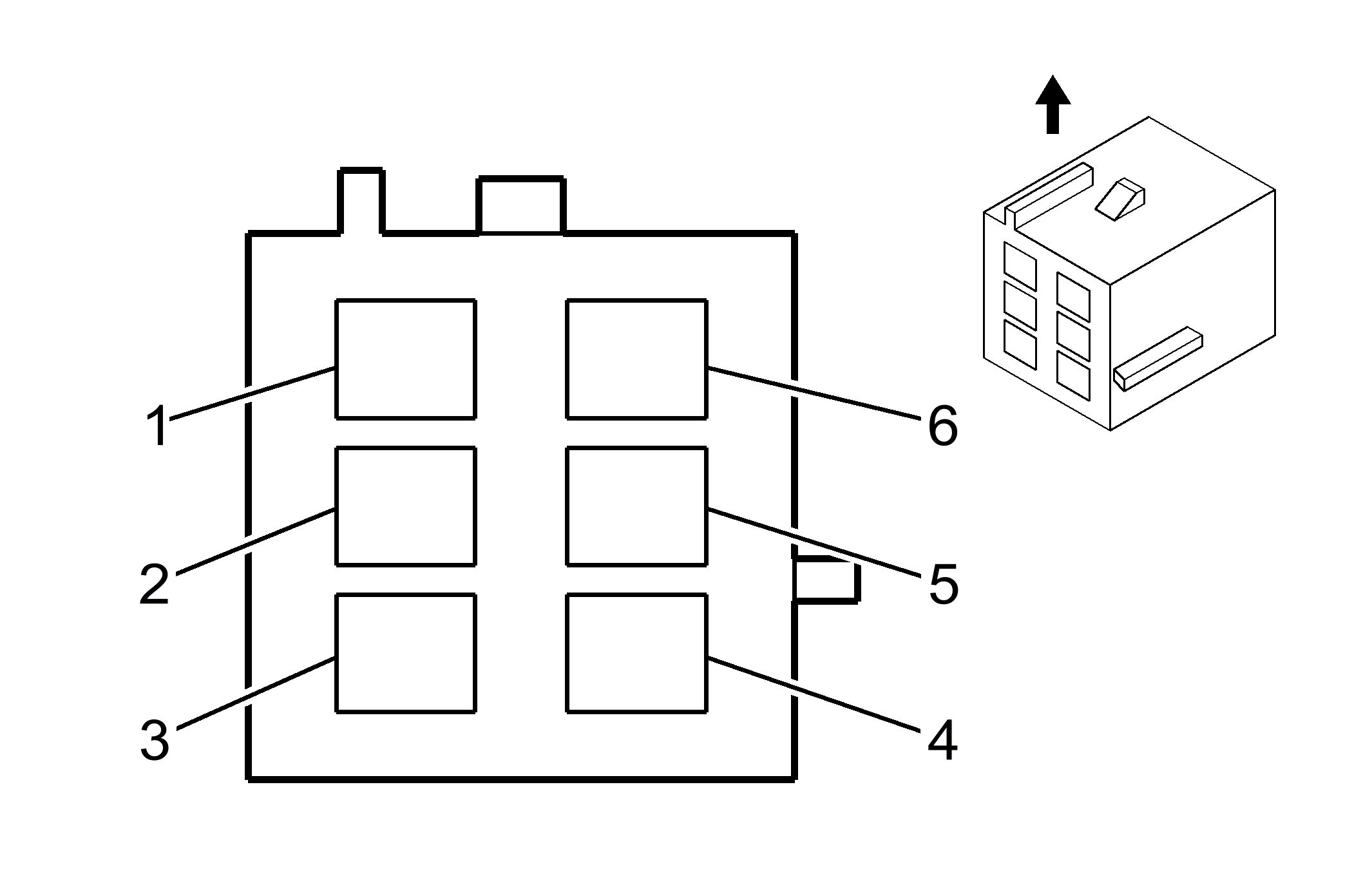

Fig 1: Outside Rearview Mirror Motor - Passenger Connector End View
GM1527223Courtesy of GENERAL MOTORS CORP.
Outside Rearview Mirror Motor - Passenger

Pin Wire Circuit Function
1 0.35 BN/WH 1498 Passenger Mirror Motor Up Control
2 0.35 L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
3 0.35 RD/WH 881 Passenger Mirror Motor Right Control
4 0.5 OG 267 Heated Mirror Element Supply Voltage
5 0.35 BK 750 Ground
6 - - Not Used
Connector Part Information
  • OEM: 15396848
  • Service: 88988323
  • Description: 6-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Pins: 1-3, 5
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: 4
  • Terminal/Tray: 12064971/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
