Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the left front tire and wheel. Refer to Tire and Wheel Removal and Installation .
  3. Remove the left engine splash shield. Refer to Engine Splash Shield Replacement .
  4. Use floor stands to support the transaxle.

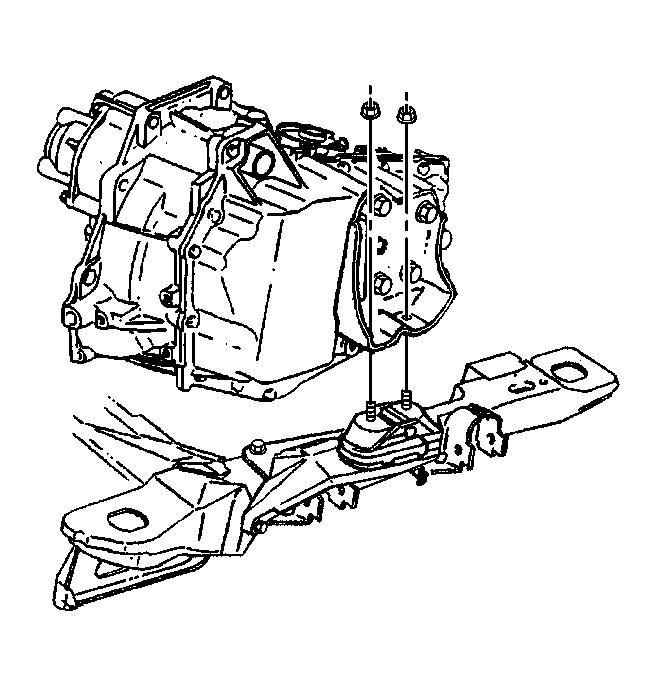

    5. Fig 1: View Of Transaxle Bracket To Transaxle Mount Upper Nuts
    GM161248Courtesy of GENERAL MOTORS CORP.
  5. With a jack, slightly take the weight off mount, and remove the transaxle bracket to transaxle mount upper nuts.
    6. Fig 2: View Of Transaxle Mount Bracket & Bolts
    GM161246Courtesy of GENERAL MOTORS CORP.
  6. Remove the transaxle bracket to transaxle bolts.
  7. Remove the transaxle bracket.
