Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the right front tire and wheel. Refer to Tire and Wheel Removal and Installation .
  3. Remove the oil filter adapter. Refer to Oil Filter Adapter and Bypass Valve Assembly Replacement .

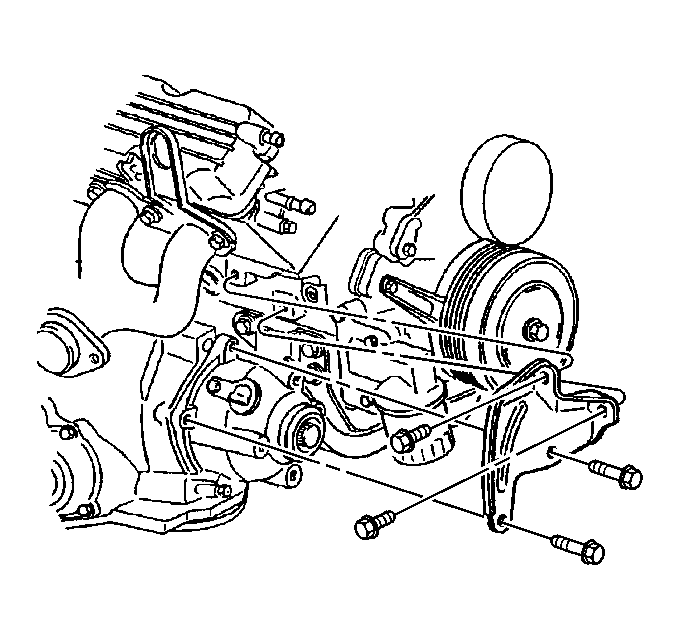

    4. Fig 1: View Of Transaxle Brace & Bolts
    GM160962Courtesy of GENERAL MOTORS CORP.
  4. Remove the transaxle brace bolts.
  5. Remove the transaxle brace.
