Wiring Harness Removal
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

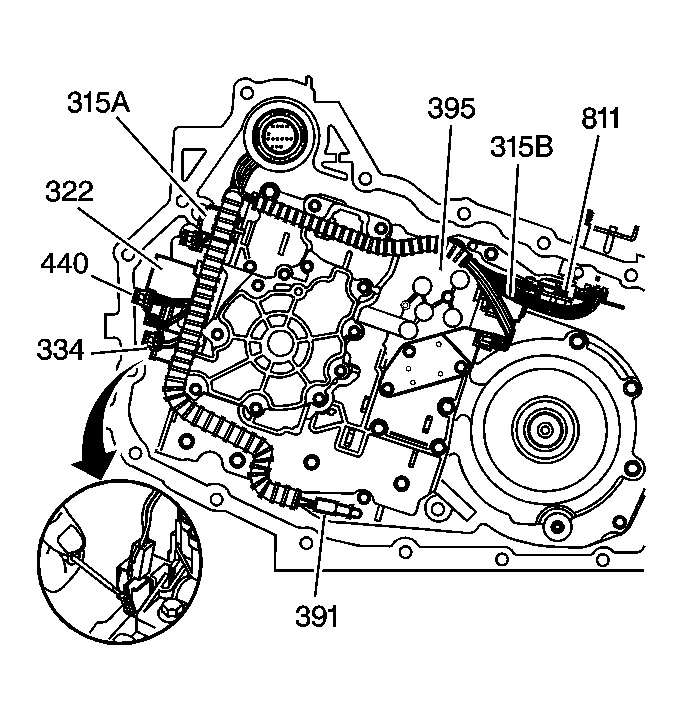

- Using a small screwdriver, pry the wiring harness (224/225) electrical connectors off of the following components:
- Automatic transaxle fluid pressure manual valve position switch assembly (395)
- 1-2, 3-4 Shift solenoid valve assembly (315A)
- 2-3 Shift solenoid valve assembly (315B)
- TCC PWM solenoid valve assembly (334)
- Pressure control solenoid valve assembly (322)
- Automatic transaxle input speed sensor assembly (440)
- IMS (811)
- Gently pull the automatic transaxle fluid temperature sensor (391) from it's clip.
- Lift the wiring harness assembly (225) off of the transaxle.
