Wiring Harness Assemble

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Wiring Harness Assembly
    GM840867Courtesy of GENERAL MOTORS CORP.
  1. Inspect the wiring harness assembly (225) for:
    • Cut or pinched wires
    • Cut wire insulation
    • Bent or broken electrical connectors
    • Damaged terminal pins

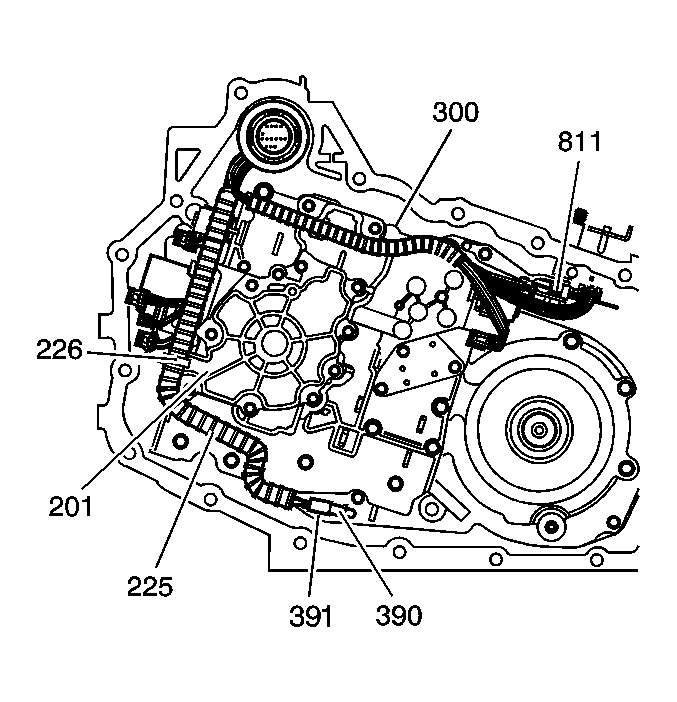

    2. Fig 2: Aligning Wire Harness Onto Control Valve Body
    GM840869Courtesy of GENERAL MOTORS CORP.
  2. Position the wire harness assembly (225) onto the control valve body (300) and the pump cover (201).
  3. Mate each connector into its respective electrical component and engage the locking tabs.
  4. Secure the wiring harness conduit into the retaining clip (226) on the pump cover (201).
  5. Assemble the fluid temperature sensor (391) into the temperature sensor clip (390).
