Transmission Support Fixture Assemble

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 3289-20 Holding Fixture Base
J 28664-B Transmission Holding Fixture. See Special Tools .
J 44465 Holding Fixture Adapter. See Special Tools .

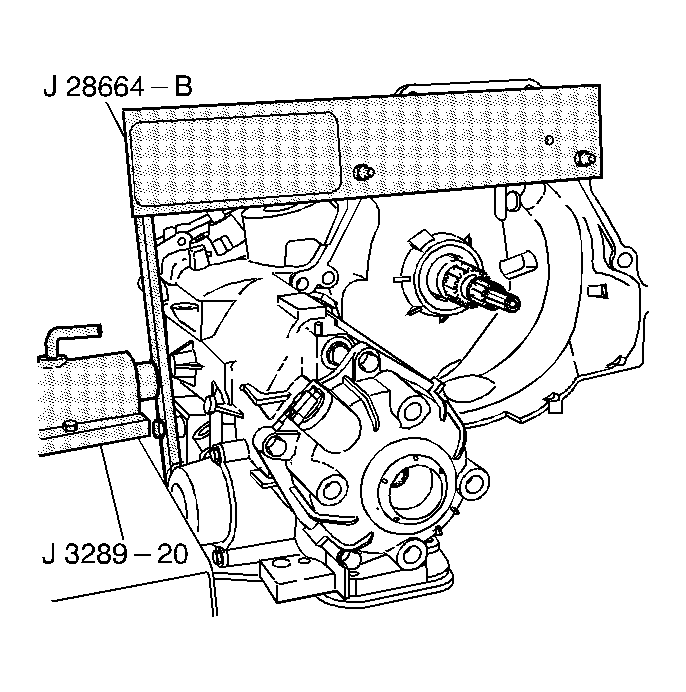

Fig 1: View Of J 28664-B & J 3289-20 Installed On Transmission

Courtesy of GENERAL MOTORS CORP.

Install J 44465 onto J 28664-B . See Special Tools .
Install J 28664-B onto the transmission. See Special Tools .
Install the transmission and holding fixture into J 3289-20 .
Insert the pin into J 3289-20 in order to hold the transmission in the desired position.
