Torque Converter Assembly Removal

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The torque converter weighs approximately 65 lbs. Personal injury may result if you lift the torque converter improperly.

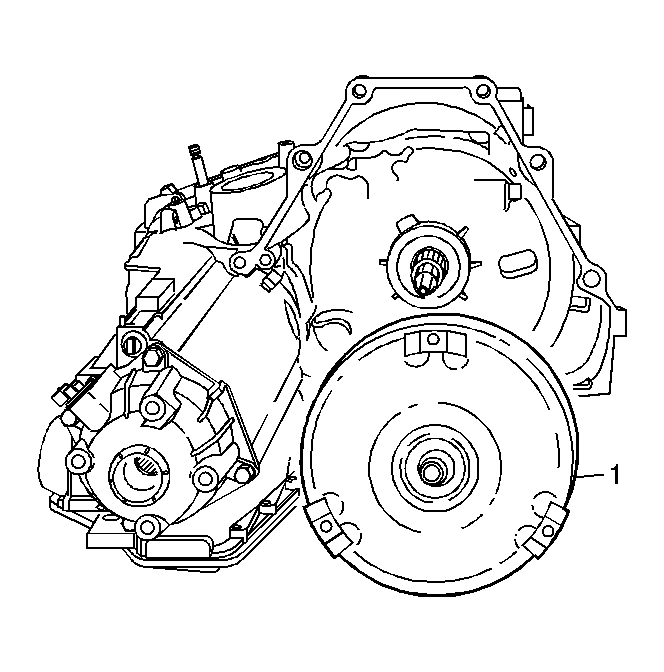

Fig 1: View Of Torque Converter Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the torque converter assembly (1).

Fig 2: Identifying Turbine Shaft O-Ring Seal

Courtesy of GENERAL MOTORS CORP.

Remove the turbine shaft O-ring seal (520).
