Reverse Band Assemble

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Reverse Band Assembly Inspection Areas

Courtesy of GENERAL MOTORS CORP.

Inspect the reverse band assembly (615) for the following:
- Cracks
- Scoring
- Lining separation
- Wear of the fiber material
Inspect the apply lug for cracks.

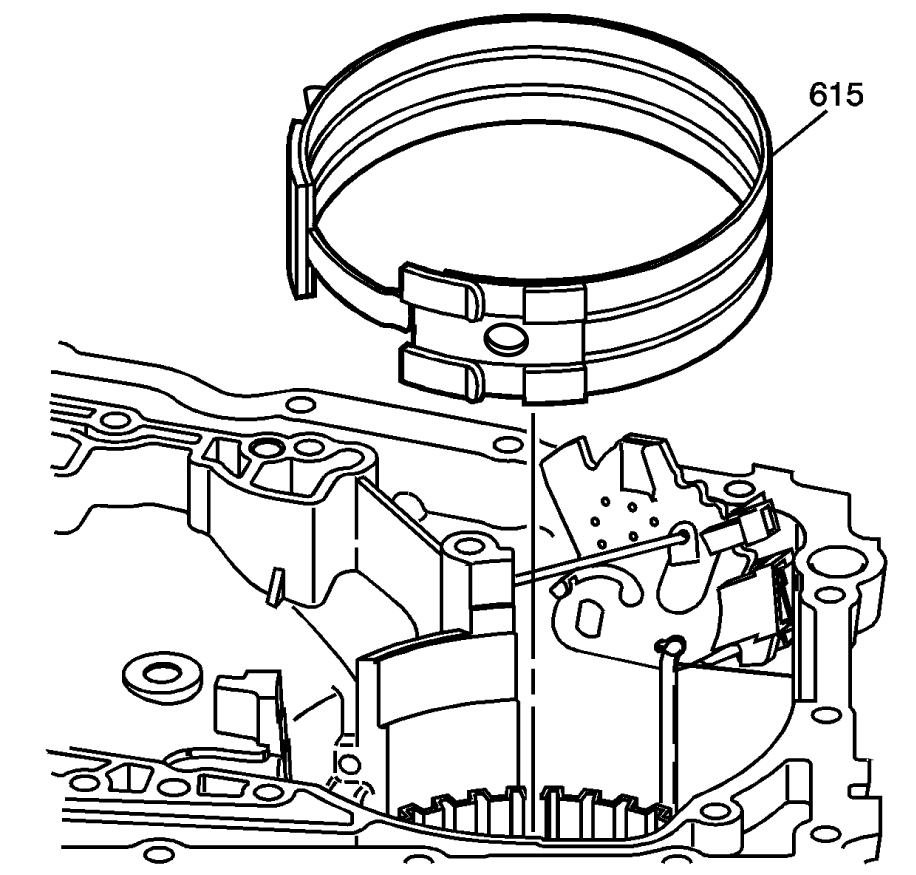

Fig 2: View Of Reverse Band Assembly

Courtesy of GENERAL MOTORS CORP.

Install the reverse band assembly (615) into the case with the band end aligned on the anchor pin in the case.
