Manual Valve Link and Fluid Dam Removal

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Manual Shift Detent Assembly
    GM870968Courtesy of GENERAL MOTORS CORP.
  1. Remove the manual shift detent bolt (805).
  2. Remove the manual shift detent assembly (804).

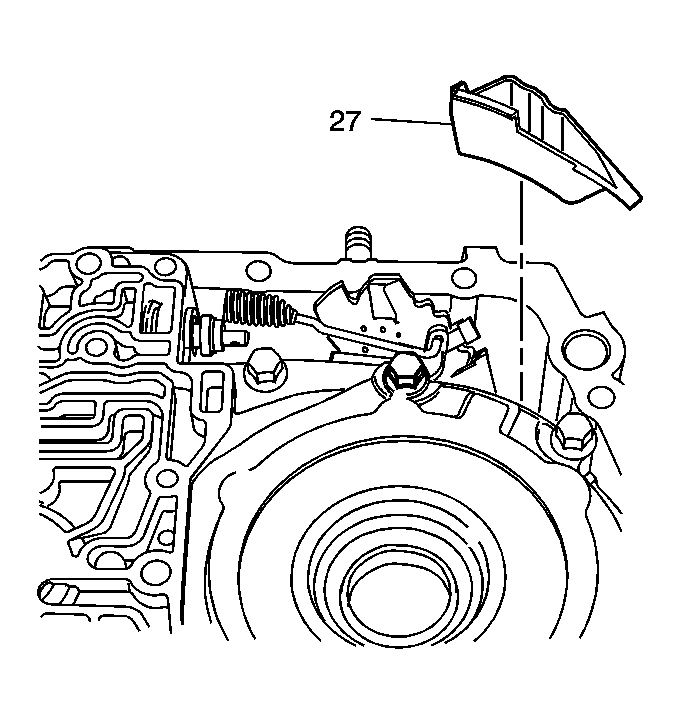

    3. Fig 2: View Of Oil Dam
    GM870971Courtesy of GENERAL MOTORS CORP.
  3. Compress the manual valve link spring from the manual valve.
  4. Lift the manual valve link off of the manual valve.
  5. Position the manual valve link so that the valve will not interfere with the case cover removal.
  6. Remove the oil dam (27) from the case.
    7. Fig 3: View Of Input Speed Sensor
    GM48196Courtesy of GENERAL MOTORS CORP.
  7. Using a small screwdriver, pry the input speed sensor clip (441) out of the case cover (400).
    8. IMPORTANT: Handle the speed sensor carefully.
  8. Carefully pull the input speed sensor (440) out of the case cover (400).
