Manual Valve Link and Fluid Dam Assemble

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Oil Dam

Courtesy of GENERAL MOTORS CORP.

Install the oil dam (27) into the case.
Assemble the manual valve link onto the manual shift detent lever/IMS detent lever.

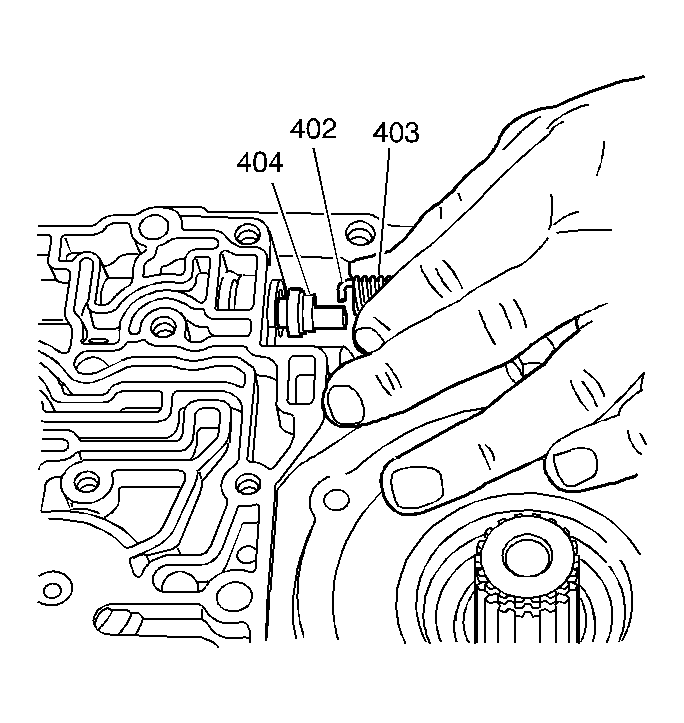

Fig 2: Connecting Manual Valve Link To Manual Valve

Courtesy of GENERAL MOTORS CORP.

Connect the manual valve link (402) to the manual valve (404).
Install the manual valve link spring (403).

Fig 3: Locating Manual Shift Detent Assembly

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

Install the manual shift detent assembly (804), and the manual shift detent bolt (805).
Tighten: Tighten the bolt to 12 N.m (106 lb in).

Fig 4: View Of Input Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Carefully install the input speed sensor (440) into the case cover (400).
Install the input speed sensor clip (441) into the case cover (400).
