Drive Sprocket Support Removal

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 23907 Universal Slide Hammer and Puller
J 26941 Drive Sprocket Support Bearing Remover

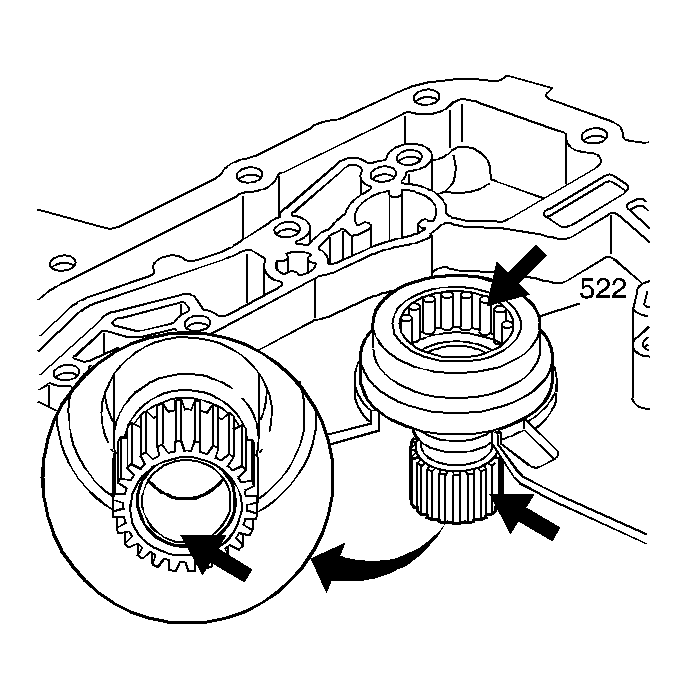

Fig 1: Identifying Inspection Areas On Drive Sprocket Support

Courtesy of GENERAL MOTORS CORP.

Inspect the drive sprocket support (522) for the following conditions:
- Damaged splines
- A damaged drive sprocket support bearing
- A damaged turbine shaft bushing (pressed inside the support)
Remove the drive sprocket support bearing only if the bearing is damaged.
Remove the drive sprocket support assembly only if the support is damaged.

Fig 2: Identifying J 23907, J26941 & Bearing Assembly

Courtesy of GENERAL MOTORS CORP.

Assemble J 23907 and J 26941 .
Use J 23907 and J 26941 in order to remove the bearing assembly (521) from the drive sprocket support.

Fig 3: Locating Drive Sprocket Support Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the four drive sprocket support bolts (524).
Remove the drive sprocket support assembly (522).
