Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

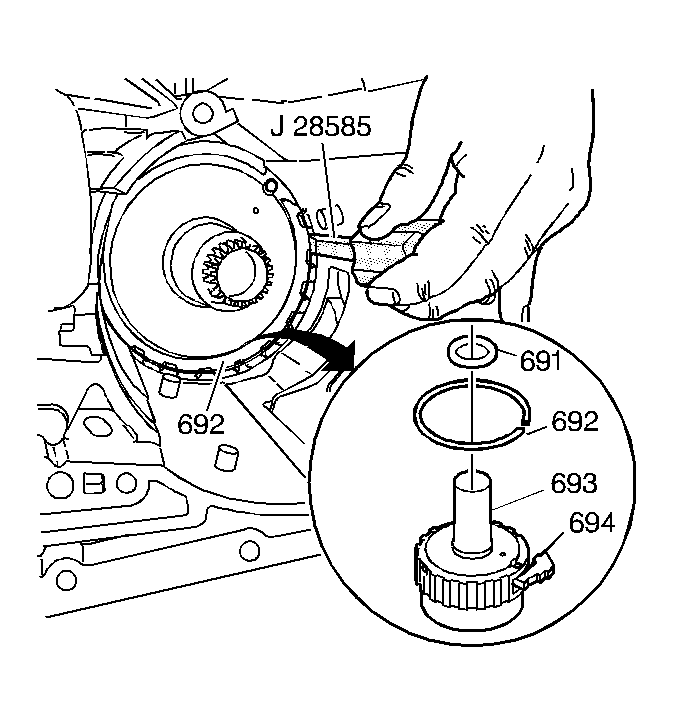

    Fig 1: View Of Differential Carrier Internal Gear Snap Ring & Thrust Washer
    GM10567Courtesy of GENERAL MOTORS CORP.
  1. Remove the bearing (691) from the differential carrier internal gear.
  2. Use J 28585  or a large screwdriver in order to remove the differential carrier internal gear snap ring (692). See Special Tools .
    3. Fig 2: View Of Differential Carrier Internal Gear Assembly
    GM893328Courtesy of GENERAL MOTORS CORP.
  3. Lift the differential carrier internal gear assembly (693) out of the case by depressing the park pawl assembly in order to clear the case.
