Assembly Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Differential Carrier Internal Gear Assembly Inspection Areas

Courtesy of GENERAL MOTORS CORP.

Inspect the differential carrier internal gear assembly (693) for the following conditions:
- Damaged or worn bushings
- Plugged lube oil holes
- Damaged case splines
- Damaged or worn gear teeth
- A damaged or worn park pawl assembly (694)
- A damaged snap ring (692)

Fig 2: View Of Differential Carrier Internal Gear Assembly

Courtesy of GENERAL MOTORS CORP.

Install the differential carrier internal gear assembly (693) into the case. Align the park pawl assembly with the park pawl actuator assembly.

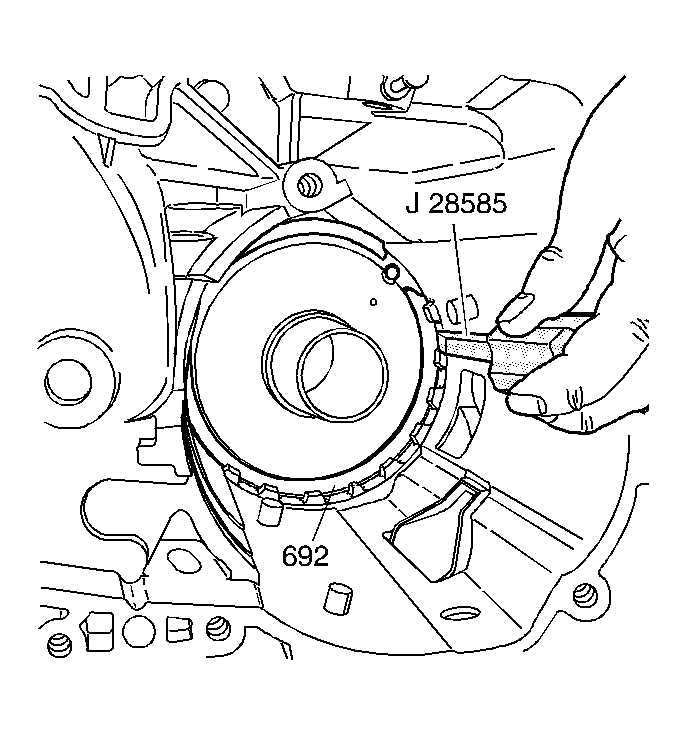

Fig 3: Identifying J 28585 & Snap Ring

Courtesy of GENERAL MOTORS CORP.

Use J 28585 or a long screwdriver in order to install the snap ring (692) into the case as shown. See Special Tools .
