Differential Carrier Inspection (FWD Only)
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

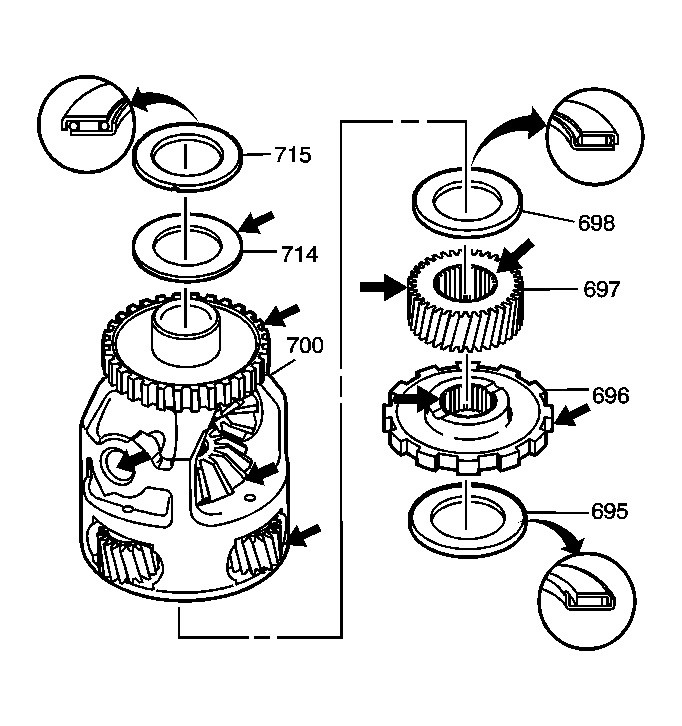

- Inspect the differential carrier assembly (700) for the following conditions:
- Damaged or worn teeth, bearing rollers, washers, or pins on the differential planetary pinion gear
- Damaged or worn teeth or splines on the final drive sun gear (697)
- Damaged or worn teeth, splines, or thrust washers on the differential side gear
- Damaged or worn teeth, thrust washers, or shaft on the differential pinion gear
- Damaged or worn lugs or splines on the parking gear (696)
- A damaged vehicle speed sensor reluctor wheel
- Damaged internal gear/parking gear thrust bearing (695), differential carrier/sun gear thrust bearing (698) or differential carrier/case thrust bearing (715)
- A damaged or worn differential carrier/case selective thrust washer (714)
- A damaged differential/final drive carrier housing (700)
- Inspect the final drive sun gear shaft (689) for the following conditions:
- Damaged or worn splines
- Cracks at lube oil holes
- Damaged or worn bearing journals
- Use a feeler gauge in order to measure the end play of the differential carrier planetary pinion gear.
Specification: End play should be 0.24-0.63 mm (0.009-0.025 in).
- If the end play check or the component inspection indicates a condition, repair the differential/final drive carrier assembly (700).
