Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Transaxle Case Cover Bolts Locations
    GM48203Courtesy of GENERAL MOTORS CORP.
  1. Remove the indicated case cover bolts (434-436).
  2. Use J 44538  to remove case cover bolt (433). See Special Tools .

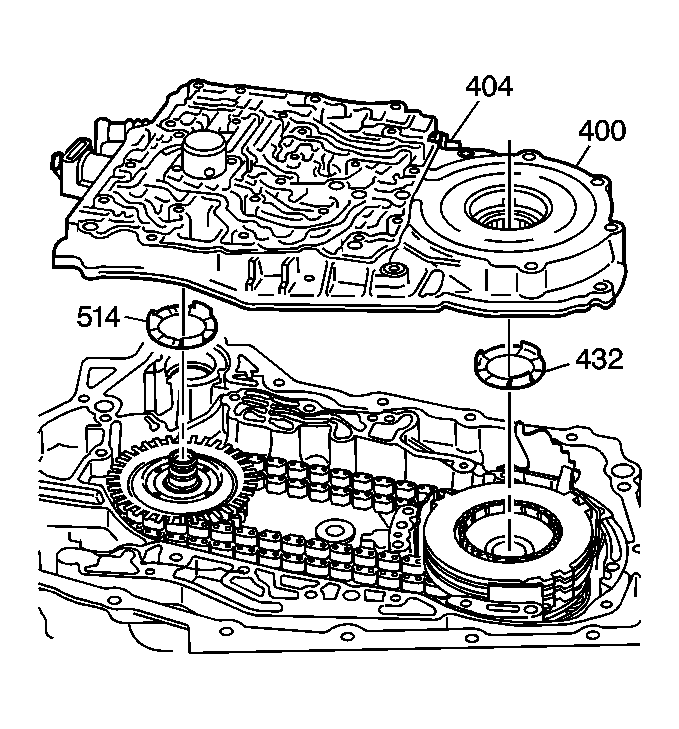

    3. Fig 2: Identifying Fourth Clutch Shaft Thrust Washer & Drive Sprocket/Case Cover Thrust Washer
    GM48207Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Be sure to hold the manual valve (404) in place.
  3. Lift the case cover assembly (400) off of the case.
  4. Remove the thrust washer (432).
    5. Fig 3: View Of Upper & Lower Case Cover Gaskets
    GM1833141Courtesy of GENERAL MOTORS CORP.
  5. Remove the upper (430) and the lower (429) case cover gaskets.
