Case Cover Bearing Assemble

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 8092 Driver Handle. See Special Tools .
J 41991 Driveshaft Bearing Remover/Installer. See Special Tools .

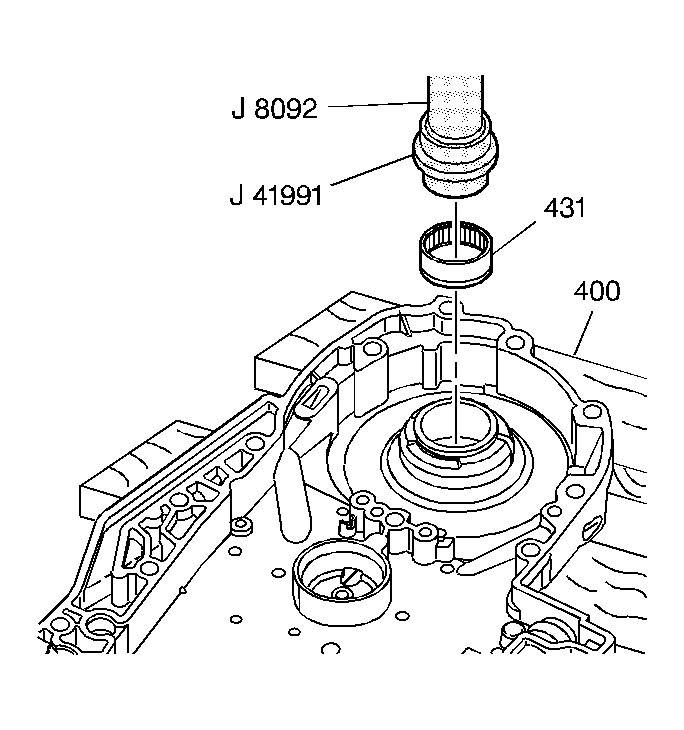

Fig 1: Pressing Drive Shaft Bearing In With J 8092 & J 41991

Courtesy of GENERAL MOTORS CORP.

Assemble J 8092 and J 41991 for bearing installation. See Special Tools .
Place the case cover (400) on a clean, flat surface with the case mating surface up.

IMPORTANT: When installing the new bearing the part number should be visible (facing upward).

Using the assembled tool, press the drive shaft bearing (431) into the case cover (400).
