4th Clutch Components Removal
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

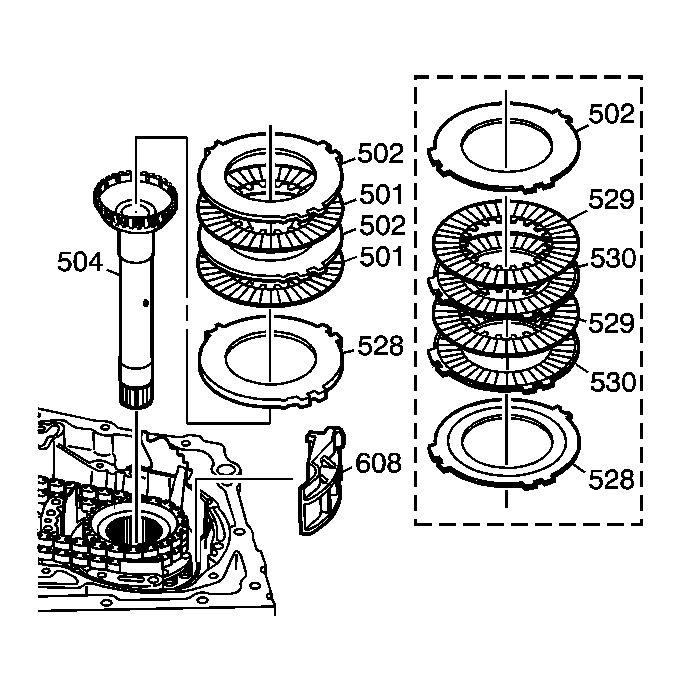

- Remove the fourth clutch fiber and steel plates (501, 502) or (529, 530),some models.
- Remove the fourth clutch apply plate (528).
- Remove the fourth clutch shaft assembly (504).
- Remove the drive link lube scoop (608).
