Disassembly Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

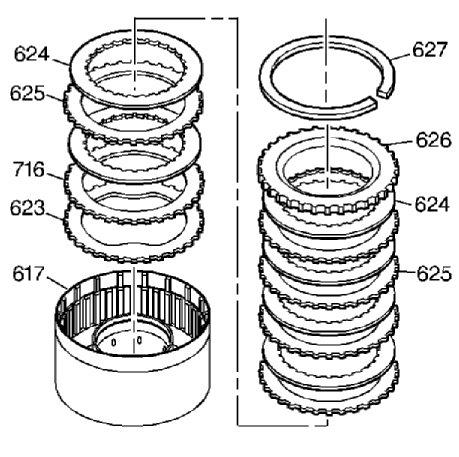

    Fig 1: View Of Second Clutch Plate Assembly
    GM48711Courtesy of GENERAL MOTORS CORP.
  1. Use a flat blade screwdriver in order to remove the retaining ring (627) from the second clutch housing.
  2. Remove the second clutch backing plate (626). Remove the alternating second clutch fiber plates (624). Remove the second clutch steel plates (625).
  3. Remove the second clutch apply plate (716). Remove the second clutch waved plate (623).
    4. Fig 2: Compressing Second Clutch Piston Spring Using J 23327 & J 38734
    GM840855Courtesy of GENERAL MOTORS CORP.
  4. Use J 23327  (1) and J 38734  (2) in order to compress the second clutch piston spring (621). See Special Tools .
  5. Remove the retaining ring (622).
  6. Remove J 23327  and J 38734  from the second clutch housing (617). See Special Tools .
    7. Fig 3: Identifying Second Clutch Spring Assembly
    GM49039Courtesy of GENERAL MOTORS CORP.
  7. Remove the second clutch spring assembly (621).
  8. Remove the second clutch piston assembly (620).
