Overdrive Range, 4-3 Downshift - TCC Not Applied - With Touch Activated Power Fluid Flow Diagram - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

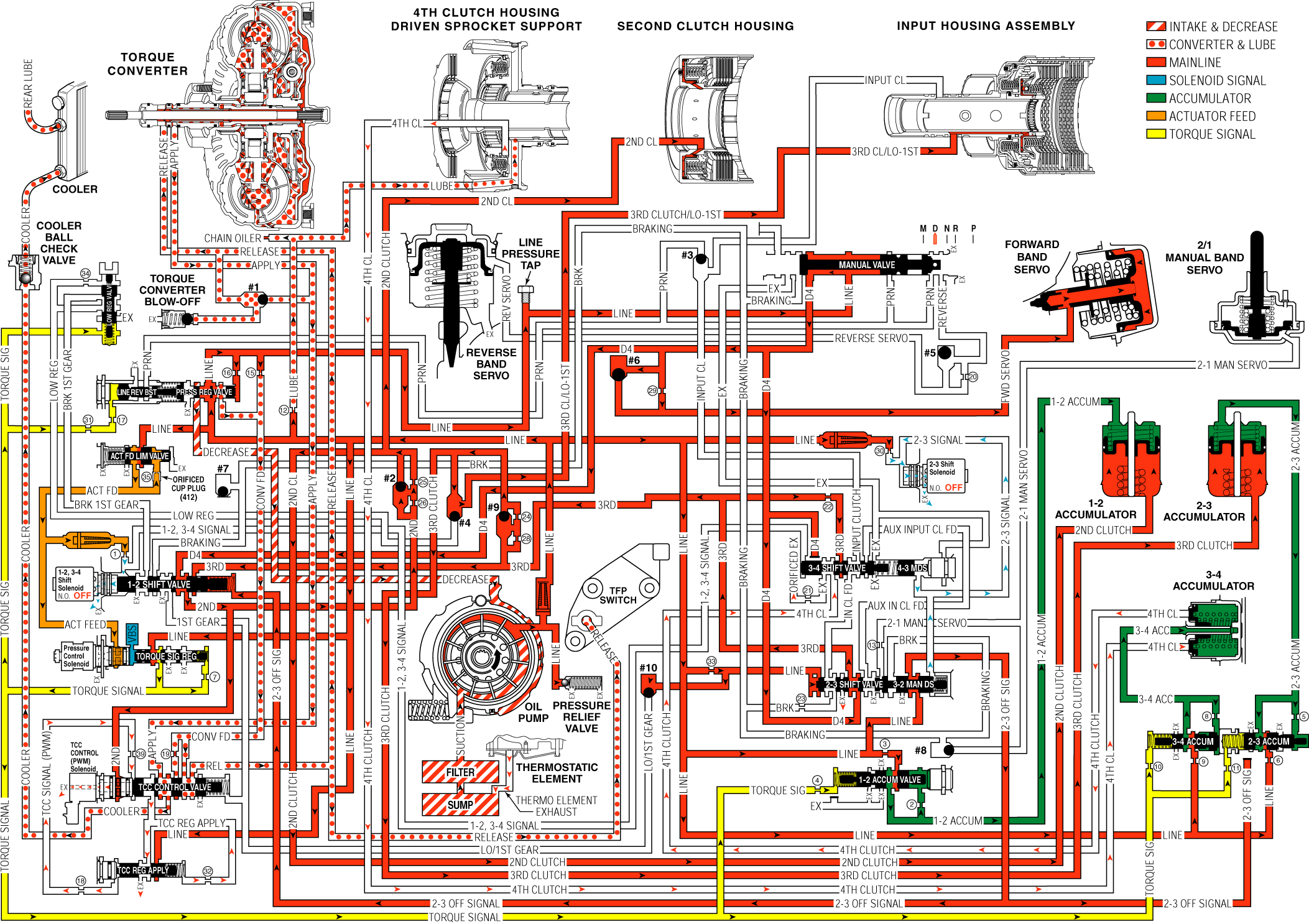

Fig 1: Overdrive Range, 4-3 Downshift - TCC Not Applied - With Touch Activated Power Fluid Flow Diagram
GM1174574Courtesy of GENERAL MOTORS CORP.
