Remote Power Steering Fluid Reservoir Replacement (LS4)
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

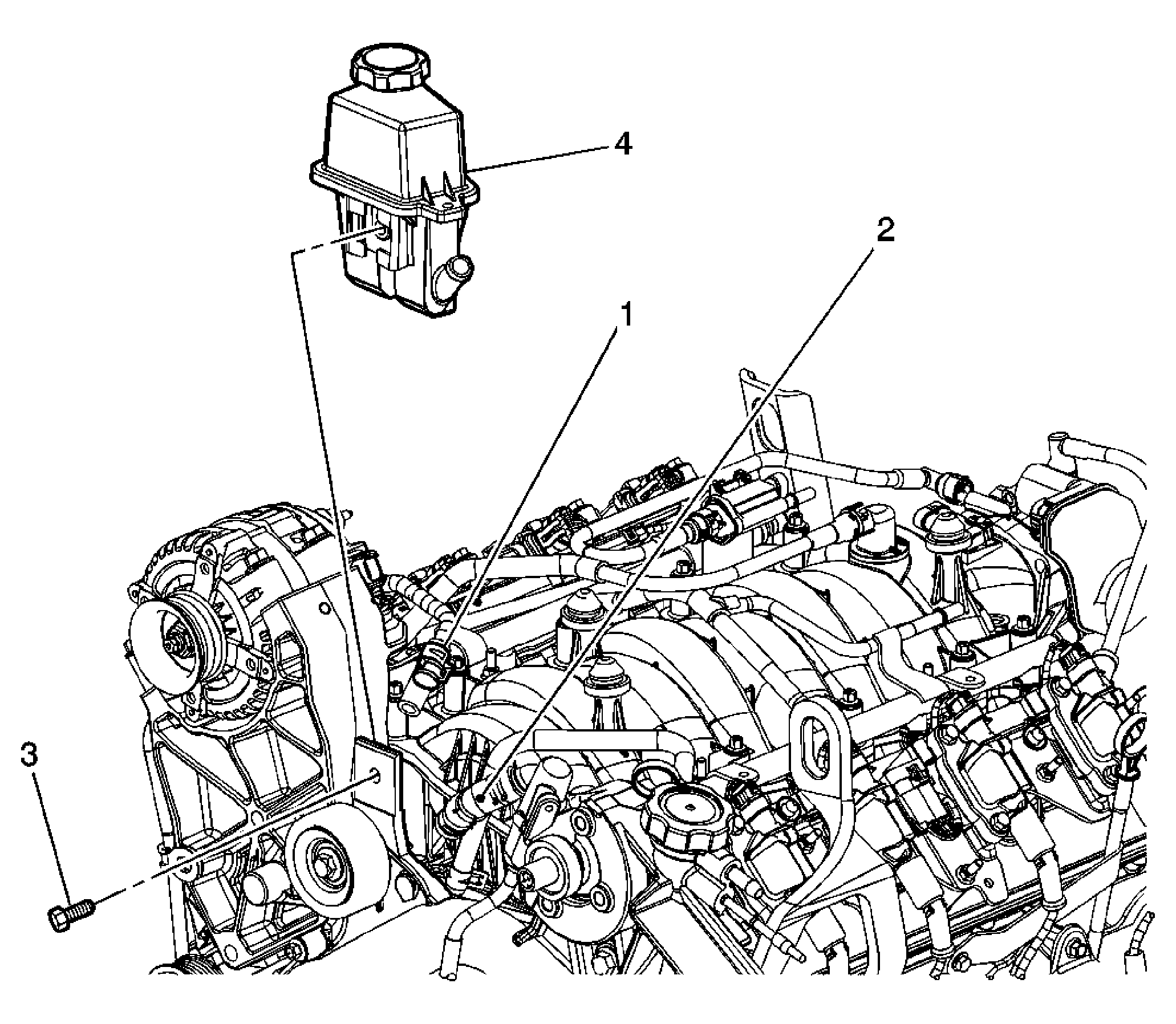

| Callout | Component Name |
|---|---|
| 1 | Power Steering Return Hose Clamp Tip: Using the appropriate tool, remove the power steering fluid from the reservoir. Also, plug the open end of the hose to limit the amount of fluid leakage. |
| 2 | Power Steering Pump Feed Hose Clamp Tip: Plug or cap the hose between the power steering pump and the reservoir so as to limit the amount of fluid loss. |
| 3 | Remote Power Steering Reservoir Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 18 N.m (13 lb ft) |
| 4 | Power Steering Remote Reservoir |
