Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  2. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.
  3. Place drain pans under the vehicle as needed.

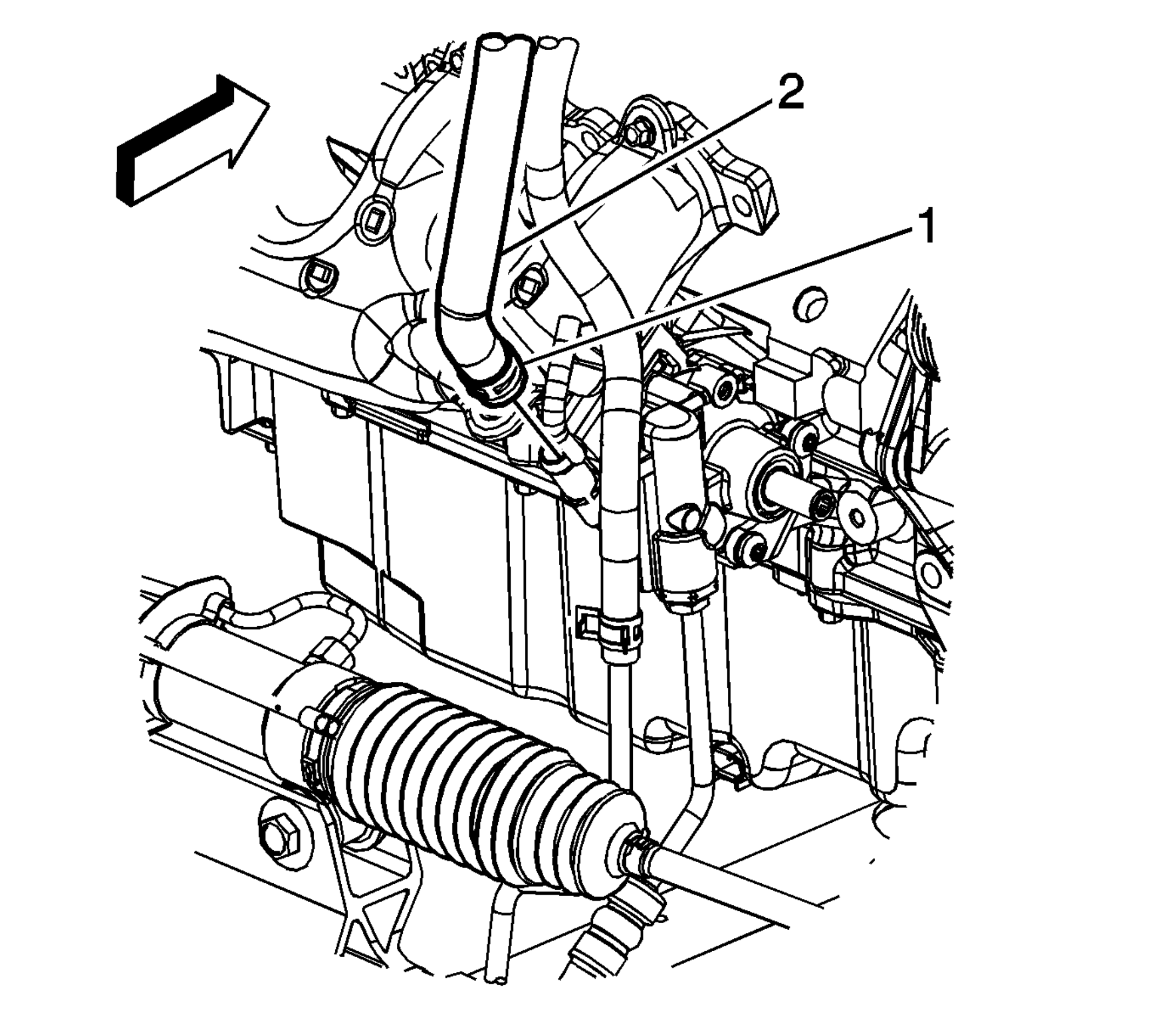

    4. Fig 1: Identifying Power Steering Reservoir Outlet Hose
    GM1878273Courtesy of GENERAL MOTORS CORP.
  4. Loosen the power steering fluid reservoir outlet hose clamp (1) and disconnect the power steering fluid reservoir outlet hose (2) from the power steering pump.
  5. Loosen the power steering fluid reservoir outlet hose clamp and disconnect the power steering fluid reservoir outlet hose from the remote power steering fluid reservoir.
  6. Remove the power steering fluid reservoir outlet hose from the vehicle.
