Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering reservoir inlet hose to the vehicle.

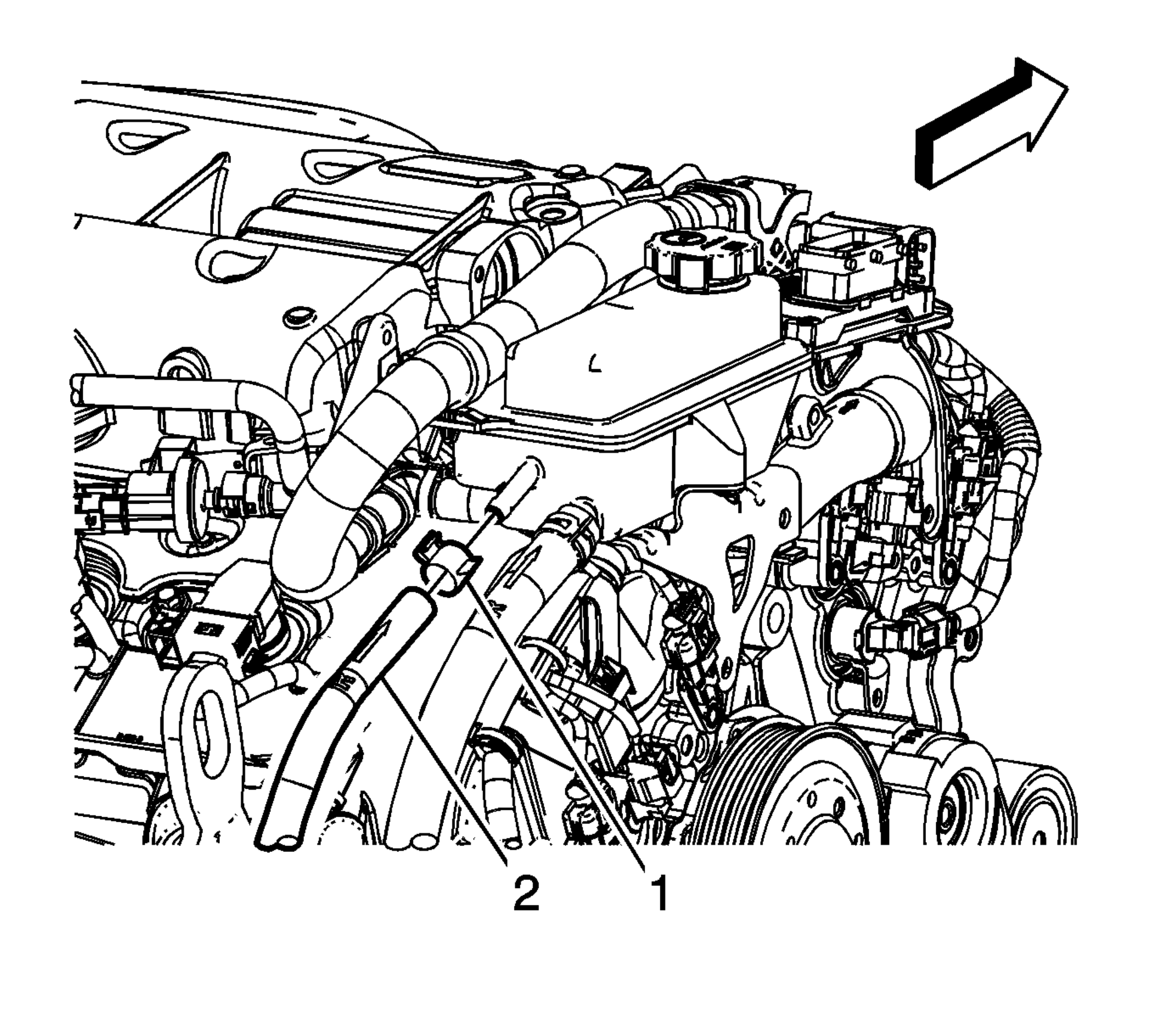

    2. Fig 1: Identifying Power Steering Reservoir Inlet Hose
    GM1878164Courtesy of GENERAL MOTORS CORP.
  2. Connect the power steering reservoir inlet hose (2) and release the power steering reservoir inlet hose clamp (1) in place at the remote power steering fluid reservoir.

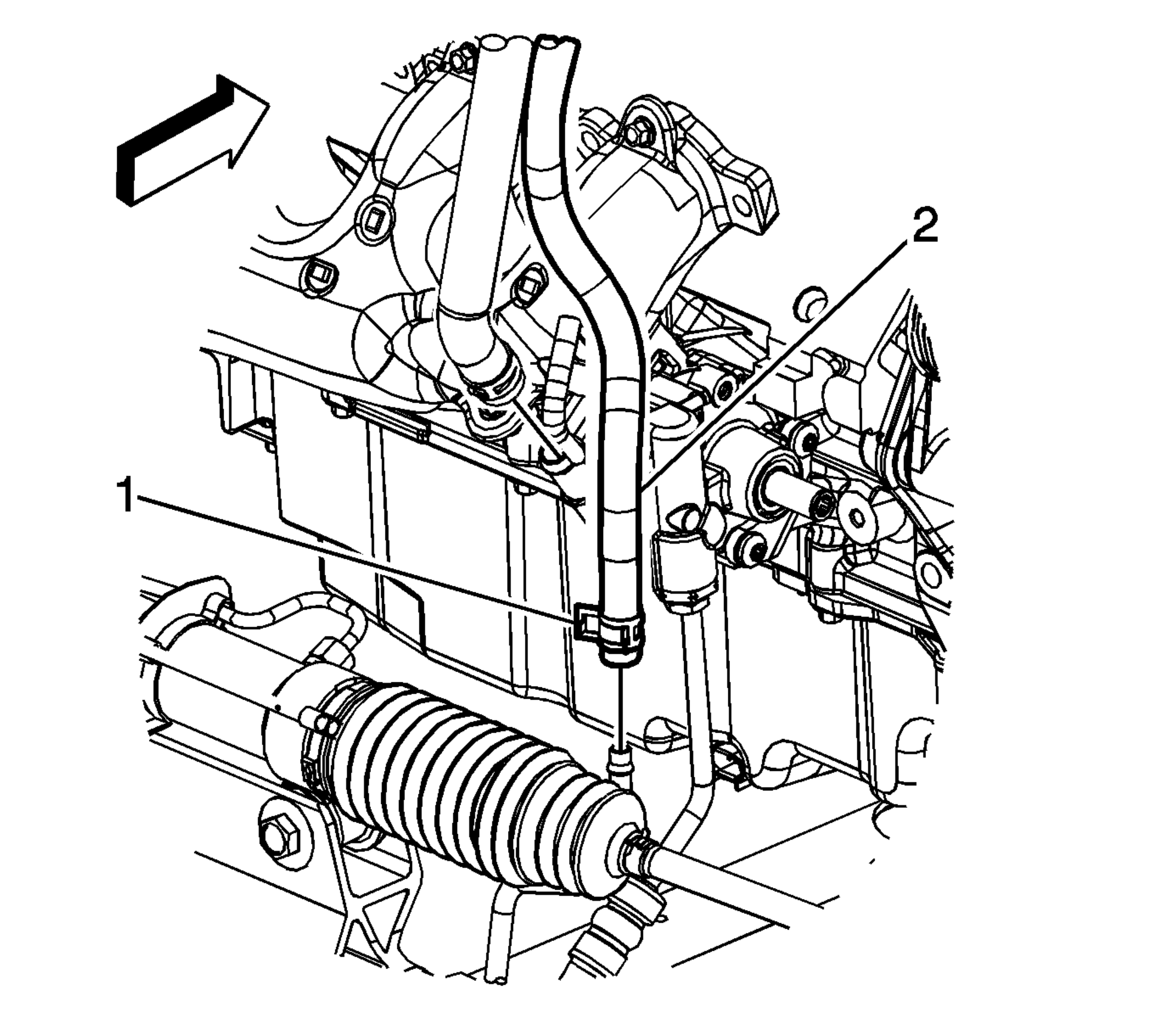

    3. Fig 2: View Of Power Steering Reservoir Inlet Hose & Clamp
    GM1878099Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering reservoir inlet hose (2) and release the power steering reservoir inlet hose clamp (1) in place at the power steering cooler hose.
  4. Clean any excess fluid from the vehicle and remove any drain pans.
  5. Fill and bleed the power steering fluid system. Refer to Power Steering System Bleeding .
  6. Install the fuel injection sight shield. Refer to Fuel Injector Sight Shield Replacement .
