Power Steering Fluid Reservoir Inlet Hose Replacement (LS4)

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

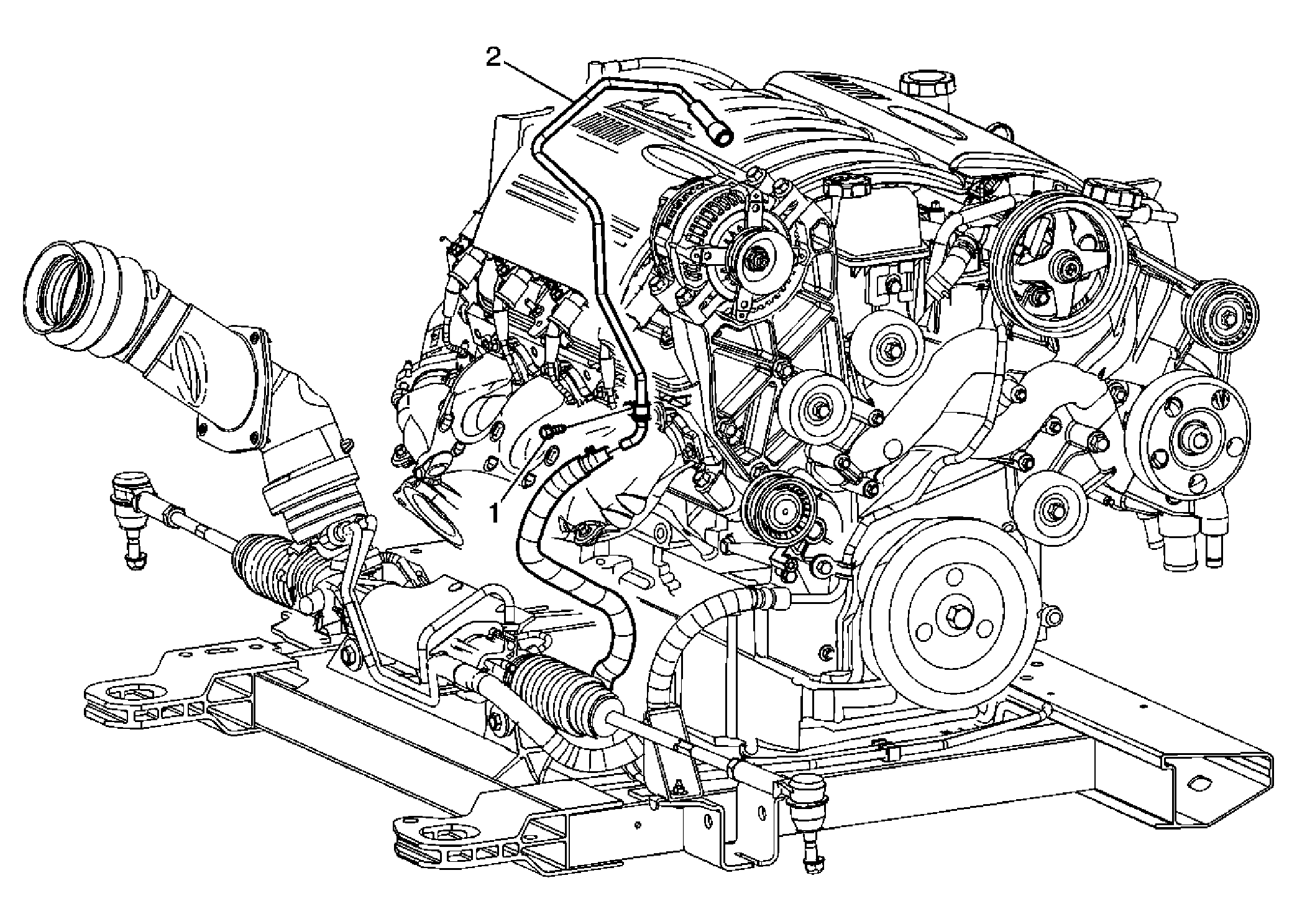

Fig 1: Replacing Power Steering Return Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
1	Power Steering Reservoir Inlet Hose Bolt NOTE: Refer to Fastener Notice . Tighten: 55 N.m (41 lb ft)
2	Power Steering Reservoir Inlet Hose Procedure Disconnect the power steering reservoir inlet hose from the power steering cooler hose. Disconnect the power steering reservoir inlet hose from the power steering pump. Fill and bleed the power steering system. Refer to Power Steering System Bleeding . Tip: Before repairs, remove as much power steering fluid from the power steering fluid reservoir as possible. Before repairs, place drain pans under the vehicle as needed. After repairs, clean any excess fluid from the vehicle and remove the drain pans.

Callout

Component Name

Preliminary Procedure:
Remove the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .

Power Steering Reservoir Inlet Hose Bolt

NOTE: Refer to Fastener Notice .

Tighten: 55 N.m (41 lb ft)

Power Steering Reservoir Inlet Hose

Procedure

Disconnect the power steering reservoir inlet hose from the power steering cooler hose.
Disconnect the power steering reservoir inlet hose from the power steering pump.
Fill and bleed the power steering system. Refer to Power Steering System Bleeding .

Tip:

Before repairs, remove as much power steering fluid from the power steering fluid reservoir as possible.
Before repairs, place drain pans under the vehicle as needed.
After repairs, clean any excess fluid from the vehicle and remove the drain pans.
