Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

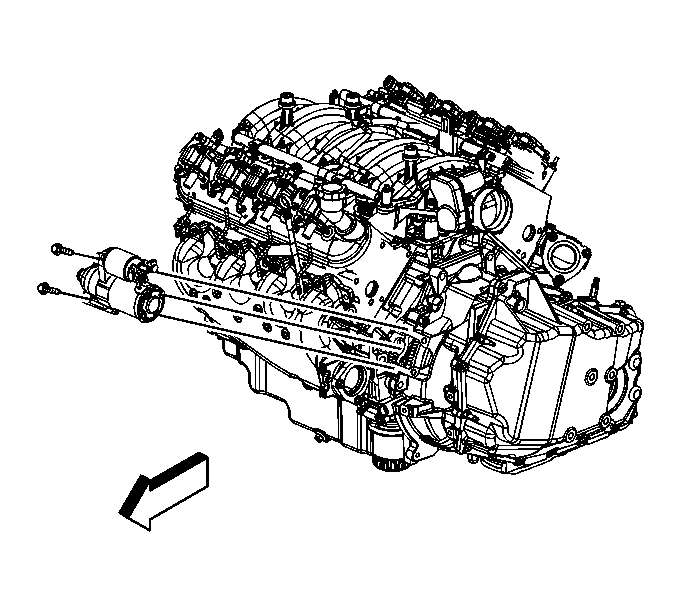

    Fig 1: View Of Starter Motor
    GM1552783Courtesy of GENERAL MOTORS CORP.
  1. Position the starter motor to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the starter bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

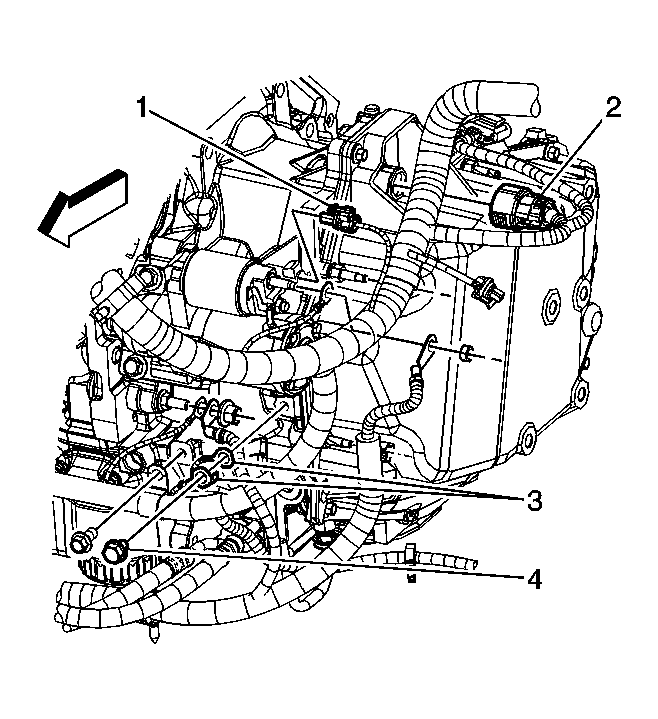

    3. Fig 2: View Of Engine Electrical Connectors
    GM1552781Courtesy of GENERAL MOTORS CORP.
  3. Connect the starter motor electrical connector (1).
    4. Fig 3: View Of Battery Positive & Negative Cables
    GM1552773Courtesy of GENERAL MOTORS CORP.
  4. Install the engine harness terminal (4) to the starter motor.
  5. Install the positive battery cable (2) and the starter solenoid BAT terminal nut (3) to the starter motor.

    Tighten:  Tighten the solenoid BAT terminal nut to 10 N.m (89 lb in).

  6. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (L26)  or Battery Negative Cable Disconnection and Connection (LY7)  or Battery Negative Cable Disconnection and Connection (LS4) .
