Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Generator Electrical Connectors
    GM1552786Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (L26)  or Battery Negative Cable Disconnection and Connection (LY7)  or Battery Negative Cable Disconnection and Connection (LS4) .
  2. Remove the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
  3. Remove the drive belt. Refer to Drive Belt Replacement - Accessory .
  4. Disconnect the generator electrical connector (2).
  5. Position aside the protective boot (1) from the generator output BAT terminal for access.
  6. Remove the generator output BAT terminal nut (4) and remove the positive battery lead (3) from the generator.

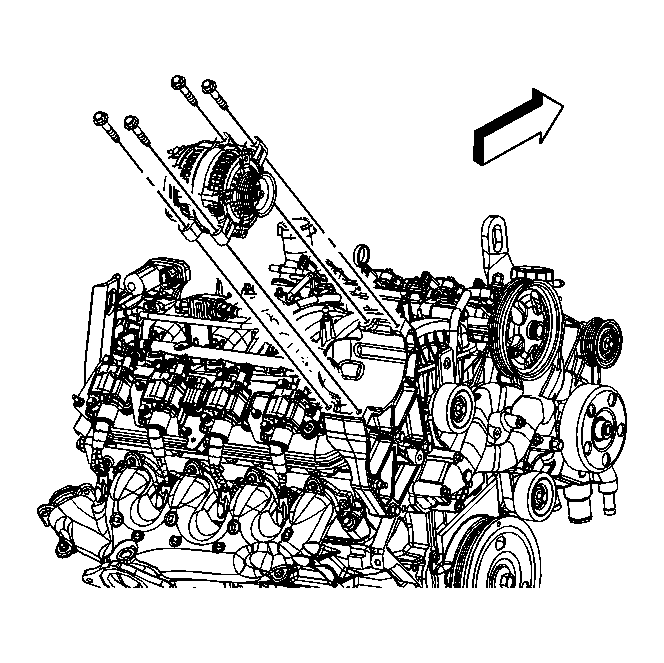

    7. Fig 2: View Of Generator & Bolts
    GM1552788Courtesy of GENERAL MOTORS CORP.
  7. Remove the generator bolts and generator.
