Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

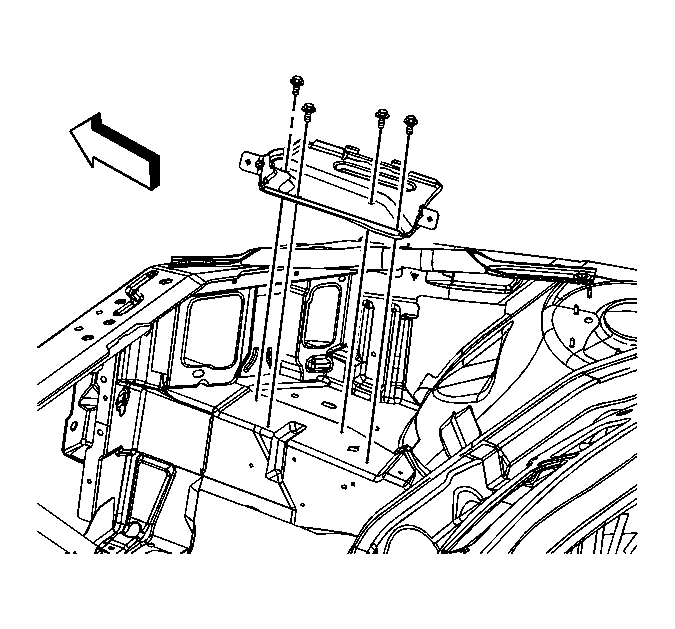

    Fig 1: Identifying Battery Tray & Bolts
    GM1552779Courtesy of GENERAL MOTORS CORP.
  1. Install the battery tray.
    2. NOTE: Refer to Fastener Notice .
  2. Install the battery tray bolts.

    Tighten:  Tighten the bolts to 5 N.m (44 lb in).

  3. Install the battery. Refer to Battery Replacement (LY7)  or Battery Replacement (L26)  or Battery Replacement (LS4) .
