Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

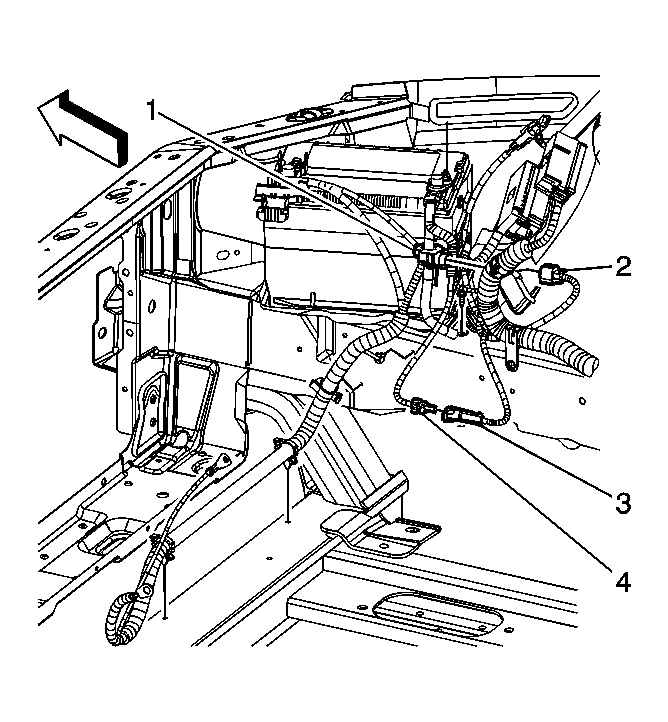

    Fig 1: View Of Right Side Of Engine Compartment
    GM1552765Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the instrument panel (I/P) harness electrical connector (2) from the battery current sensor (1).
  2. Remove the negative battery cable. Refer to Battery Negative Cable Replacement (LY7)  or Battery Negative Cable Replacement (L26) .
    3. Fig 2: View Of Battery Current Sensor
    GM1475086Courtesy of GENERAL MOTORS CORP.
  3. Cut the tie straps and electrical tape attaching the battery current sensor to the battery cable.
  4. Squeeze the negative battery cable branches together.
    5. IMPORTANT: Note the position of the battery current sensor prior to removal.
  5. Slide the battery current sensor (1) off of the negative battery cable.
