Rear Wheelhouse Liner Panel Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

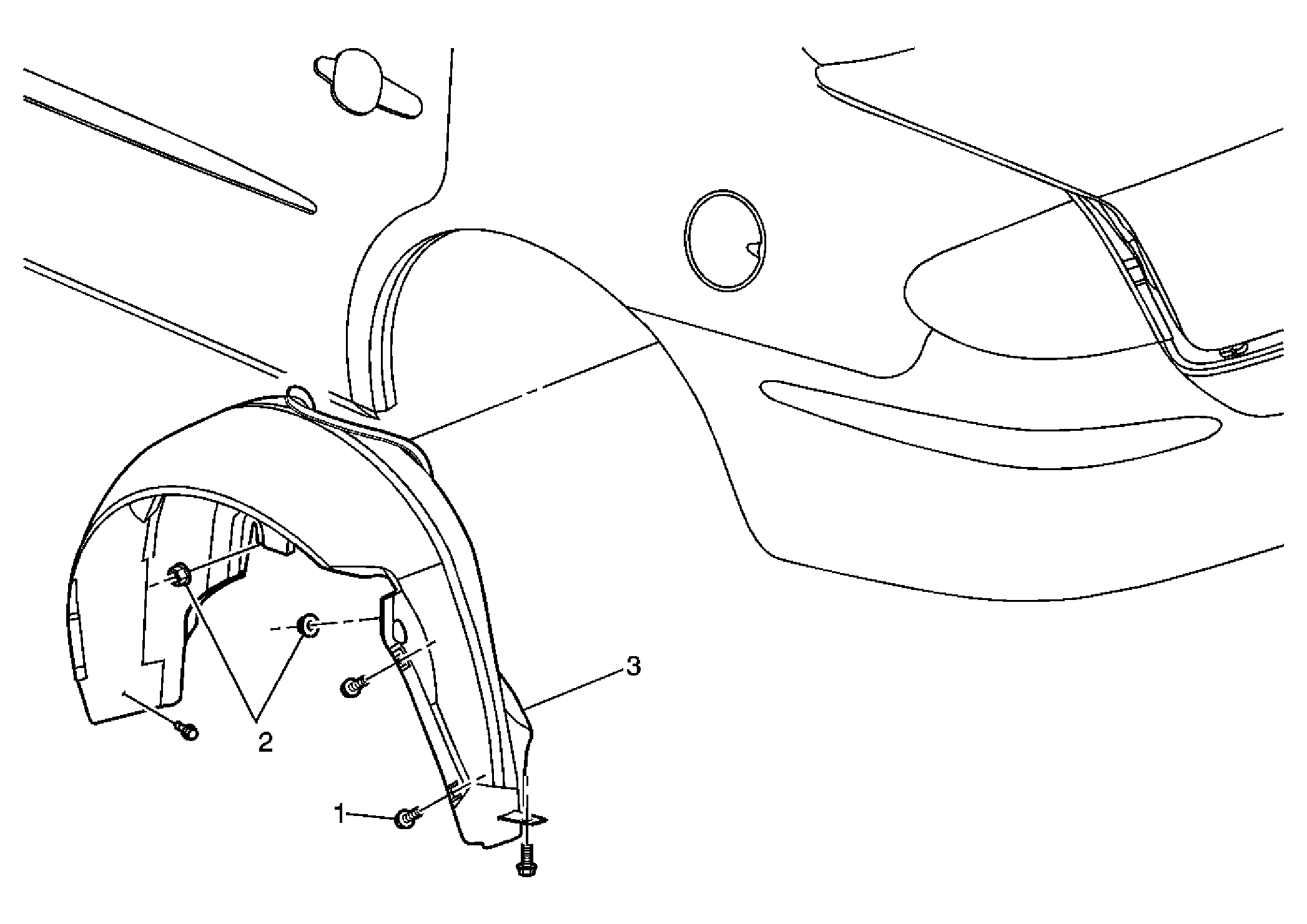

Fig 1: View Of Wheelhouse Liner Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wheelhouse Liner Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Rear Wheelhouse Liner Nut (Qty: 2) Tighten: 10 N.m (89 lb in)
3	Rear Wheelhouse Liner
