Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

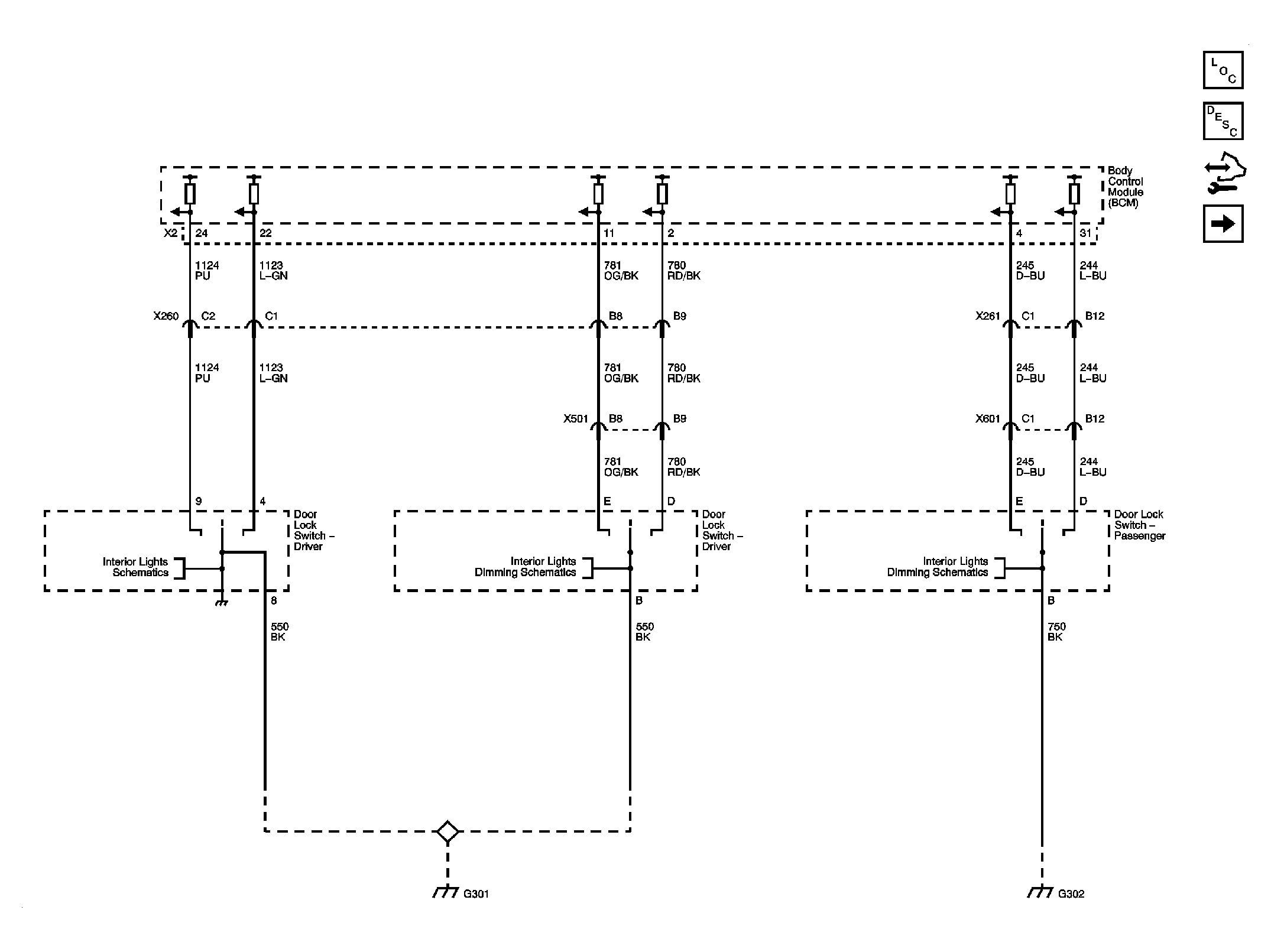

Fig 1: Switches
GM1888759Courtesy of GENERAL MOTORS CORP.

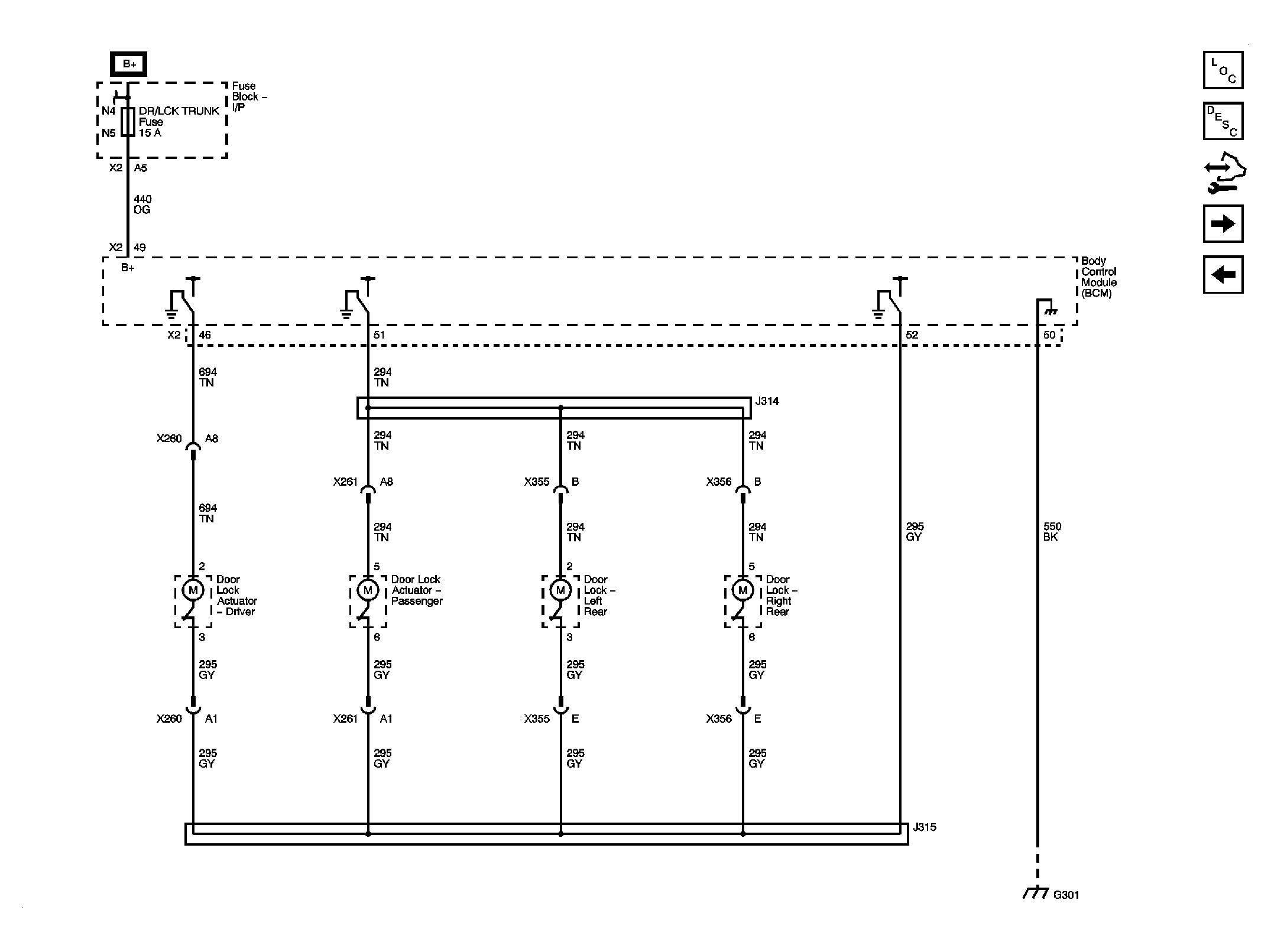

Fig 2: Actuators
GM1888760Courtesy of GENERAL MOTORS CORP.

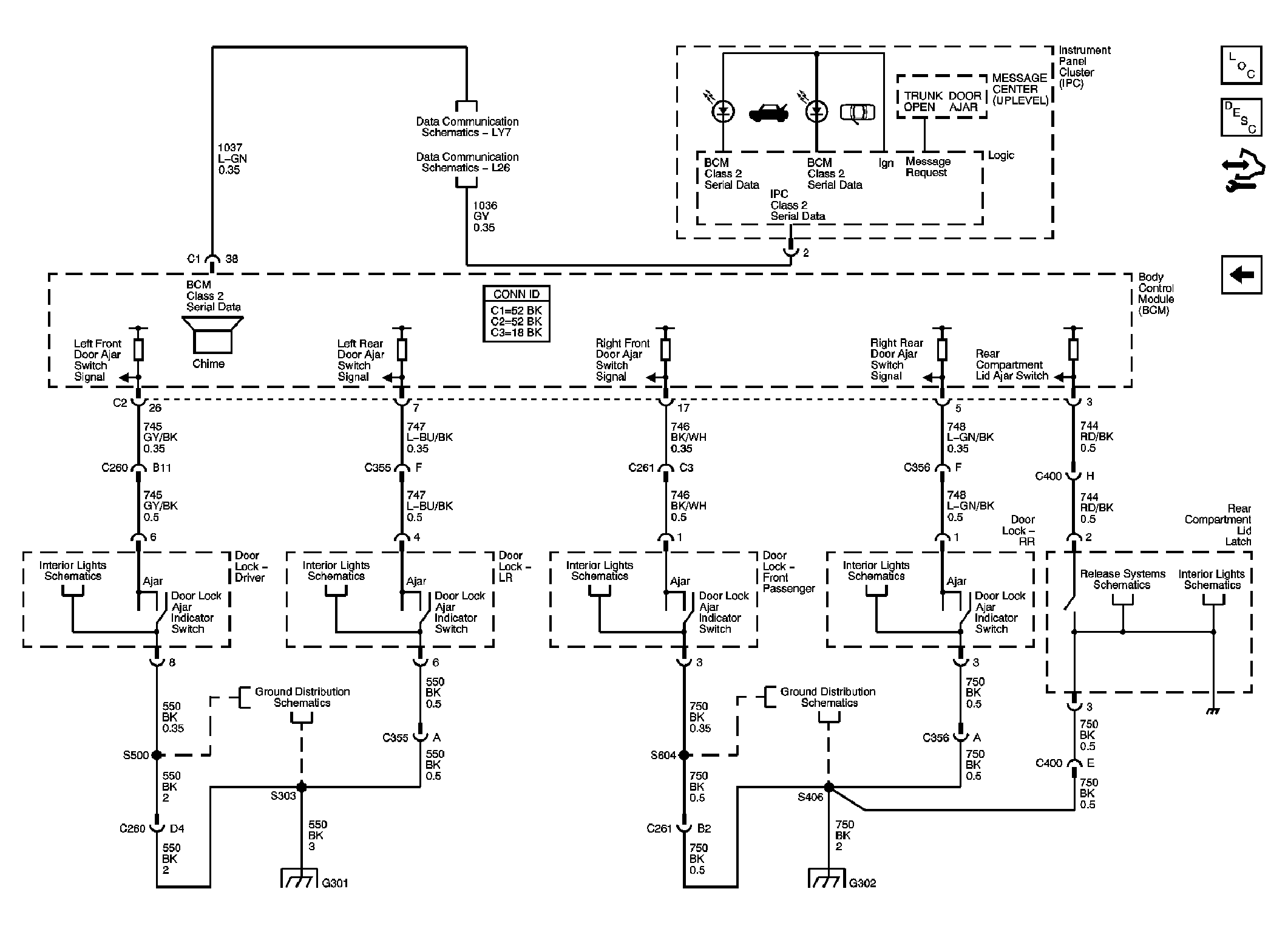

Fig 3: Ajar Indicators
GM1888762Courtesy of GENERAL MOTORS CORP.
